HIT-RE 500 V4 Epoxy anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L041481_V7_edited (209288)
L041483_V7_edited (209285)
L140821_cropped (218571)
L140814_cropped (218567)
L140802_cropped (218560)
L140799_cropped (218563)
L140792_cropped (218554)
L083049_v2_cropped (218422)
L138368_cropped (200971)
L138369_cropped (201332)

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring

  • Base materials: Concrete (cracked), Concrete (uncracked), Some types of natural stone, Wood
  • Base material condition: Dry, Submerged, Water-filled
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Content per can/cartridge
  • 330 ml
  • 500 ml
  • 1400 ml
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From EUR54,81

Technical Data

Base materials
Concrete (cracked), Concrete (uncracked), Some types of natural stone, Wood
Base material condition
Dry, Submerged, Water-filled
Approvals / test reports
ETA, Fire, Seismic
Seismic loading
Yes
Fatigue loading
Yes
Fire resistance
Yes
PROFIS software
Yes
Anchoring elements
HAS-U threaded rods, HIS-N internally-threaded rods, Rebar
Environmental conditions
Outdoor
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 75 °C
Free of styrene
Yes

Documents

Brochure
Approval document
Technical information
HSE Information
Certificate
Declaration of performance
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf More_applications_in_post-installed_rebar_1222_en [ 5.4 MB ]
pdf Steel-to-Concrete Connections Handbook 2025 [ 28.5 MB ]
pdf T2C Handbook W4617 [ 9.8 MB ]

Features & Applications

Features

  • Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic
  • The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – rigid connections can now be designed and executed with post-installed rebars without splices according to the newest design method TR069
  • Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes, extremely deep injections, large diameters and at temperatures down to -5°C / 23°F
  • Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions
  • Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method

Applications

  • Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
  • Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members
  • Anchoring structural steel connections (e.g. steel columns, beams, etc.)
  • Fastening structural baseplates, including in cracked concrete and challenging seismic conditions

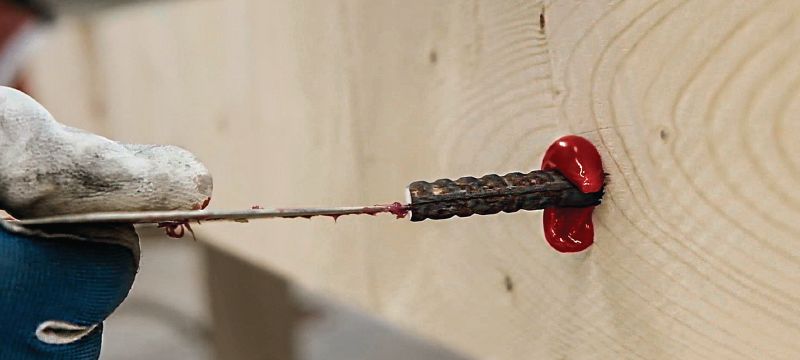

  • Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir

For approval or certificate information, please see individual items.
