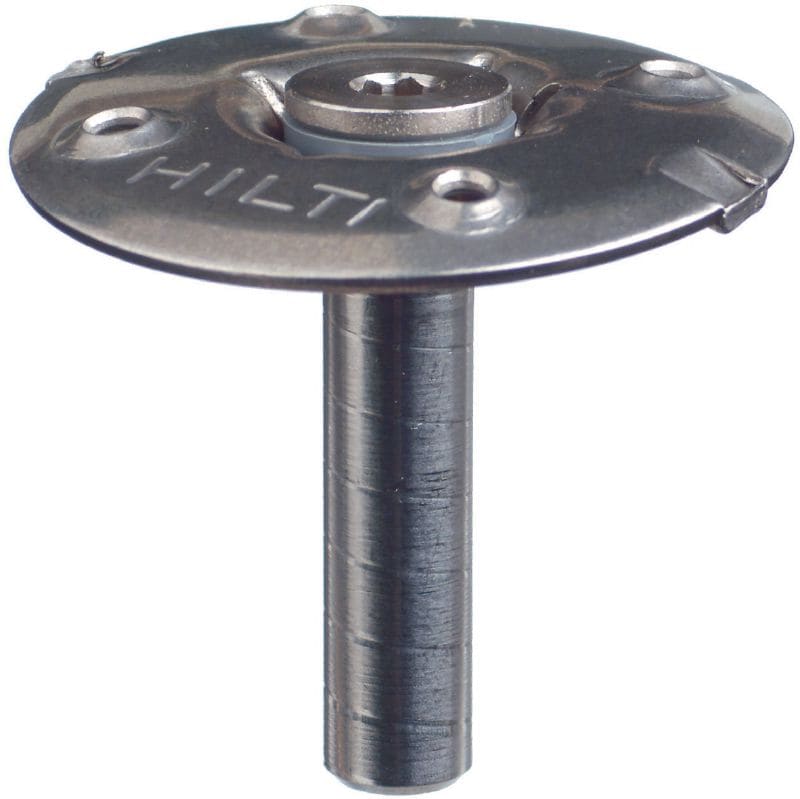

X-FCM-F Grating fastener disc (duplex coated)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130777 (2556321)
L096853_cropped (178217)
Grating

Duplex coated grating fastener disc for fixing floor grates with threaded studs in mildly corrosive environments

  • Application: Grating
  • Approvals: ABS, BV, DNV GL, LR
  • For use with (tools): DX 351
ultimate

Choose options

Grating height
  • 23 - 28 mm
  • 28 - 33 mm
  • 38 - 43 mm
Grating width range
  • 18 - 40 mm
Corrosion protection
  • Duplex coating, equivalent to 45 µm hot-dip galvanised
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From EUR2 114,71

Technical Data

Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
DX 351
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

Technical information
Approval document
Brochure
Documentation
Declaration of performance
Operating Instruction
pdf X-FCM-F Data Sheet, English, German, Spanish, French, Italian, Polish [ 4.7 MB ]
pdf X-BT-GR, X-BT-MR Data Sheet, English [ 2.7 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening grating to steel in mildly corrosive C3 environments, such as power plants, industrial facilities and mining
  • For gratings exposed to standard loads such as walkways
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
