HRD-C Plastic frame anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
34329.tif
HRD
HRD Frame anchor
22364.tif
L141310_cropped (224431)
L141374_cropped (5193233)

Pre-assembled plastic anchor for concrete and masonry with screw (carbon steel, countersunk head)

  • Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Countersunk
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 8 mm
  • 10 mm
Anchor length
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 140 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From EUR96,78

Technical Data

Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Countersunk
Approvals / test reports
ETA, Fire
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Type of fastening
Through-fastening

Documents

Technical information
Approval document
Declaration of performance
Operating Instruction
pdf Tech_HRD_redundant_2023_en, English [ 1.2 MB ]
pdf Technical data sheet for the HRD frame anchor, English [ 691.3 KB ]
pdf Tech_HRD_Redundant_2023_en, English [ 1.2 MB ]

Features & Applications

Features

  • Unbeatable versatility – flexible embedment depth (approved at 50 mm and 70 mm) makes these plastic anchors suitable for a vast range of fastenings and base materials
  • Multiple versions available – choose from multiple screw heads and corrosion resistance options depending on your project’s needs
  • Time-saving on the jobsite – these concrete plastic anchors arrive ready to use with the screw pre-assembled in the wall plug
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

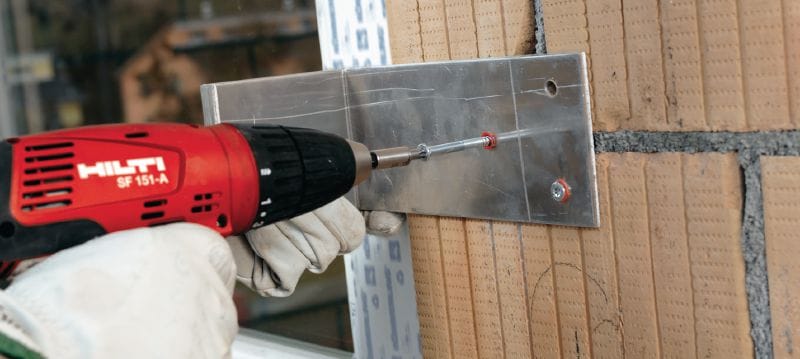

  • Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry

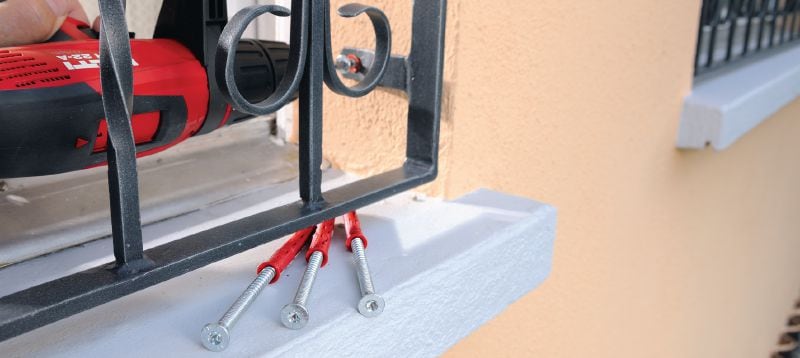

  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Framed openings – countersunk screw ideal for fastening door and window frames
  • Suitable for fastening fixtures up to 260 mm thick (60-310 mm anchor length available)

For approval or certificate information, please see individual items.
