X-ENP MXR Metal deck nails

Sheet metal nail X-ENP-19 L15MXR #283508

Configurator
Technical Data
Documents
Features & Applications
Related Products

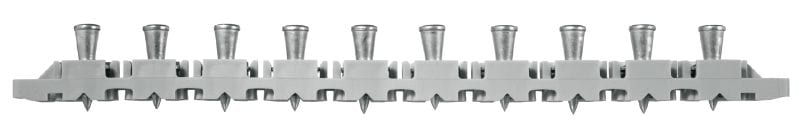

X-ENP MXR strip of 10 nails for fastening of profile metal sheets on steel with DX 860-ENP adapted
L106621_cropped (185402)

Collated nail for fastening metal decks to steel structures using the DX 9 powder-actuated nailer

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 19 mm
Pack size
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR1 399,60
EUR1,40 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 9
Product class
Ultimate

Documents

Approval document
Technical information
Declaration of performance
Operating Instruction
pdf FM 3054498 for Hilti steel deck fasteners, English [ 168.7 KB ]
pdf ETA-04/0101 for X-ENP-19 sheet metal fastener, German, English, French, Polish [ 7 MB ]
pdf UL R13203 HSN X-ENP 2013-06-13, English [ 64.8 KB ]

Features & Applications

Features

  • A much faster and safer fastening system compared to welding
  • Fully knurled tip provides high holding capacity
  • High application limits – can be used on steel with a thickness of at least 6 mm (1/4&quot;)
  • Proven system and has several worldwide approvals for siding and decking
  • No predrilling required, even on thick steel

Applications

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for roofing
  • Fastening metal floor decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for flooring
