MR / MF Standoff thread adapter

Adapter M10-MF 50 (25) #2281194

Configurator
Technical Data
Documents
Features & Applications
Related Products
L117720_cropped (205260)
L117716_cropped (205259)
L117715_cropped (205258)
L117712_cropped (205256)
L117711_cropped (205255)
L117706_cropped (205254)
L117696_cropped (205250)
L117695_cropped (205249)
L117705_cropped (205253)
L117704_cropped (205252)
L117700_cropped (205251)
L117693_cropped (205247)
L117691_cropped (205248)

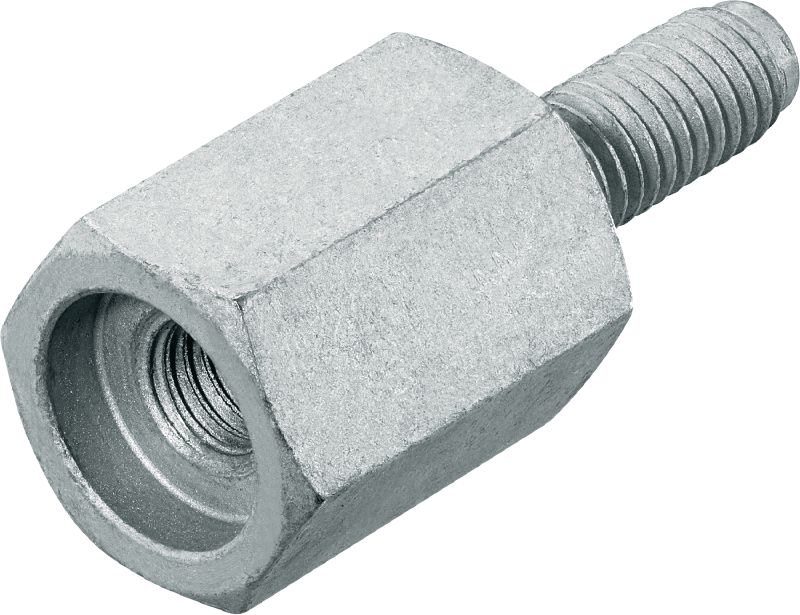

Male-Female coated carbon steel threaded standoff for fastening to passive fire protection (PFP) coated steel beams

  • Base materials: Steel
  • Minimum thickness of base material (steel): 8, 6
  • Corrosion protection: Duplex coating equivalent to 45 µm hot-dip galvanized
ultimate

Choose options

Thread size
  • M10
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR307,44
EUR12,30 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
8, 6
Corrosion protection
Duplex coating equivalent to 45 µm hot-dip galvanized
Material
Duplex coating equivalent to 45 µm hot-dip galvanized
Thread size
M10
Product class
Ultimate
Height
50 mm

Documents

Technical information
Operating Instruction
pdf Standoff adapter Data Sheet, English [ 3.7 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Helps to prevent contact between fixtures and steel beams or plates – both uncoated or passive fire protection (PFP) coated beams
  • Faster and more efficient – no welding/bracketing needed
  • Versatile – you can use threaded standoffs as a spacer for a wide range of fastenings on intumescent PFP coated beams
  • Wide M8 flange nut available for use with MQ strut channels

Applications

  • Fastening gratings to steel structures using the MQZ plate and X-FCM-M/R grating disc in steel greater than 6 mm thickness for S-BT and 8 mm for X-BT

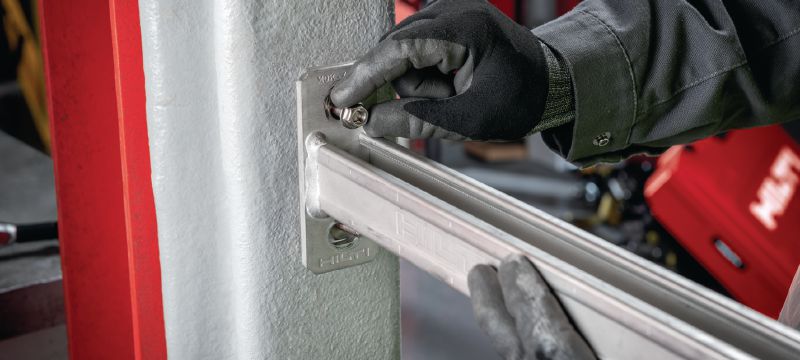

  • Fastening junction boxes, switchgear and instrumentation panels directly or using strut channels
  • Fastening cable trays and cable runs using strut channels or conduit clips
  • Fastening lighting, signage and other fixtures
