CFS-T SBO transit frames
Transit frame CFS-T SBO-8x6 GS #2060510

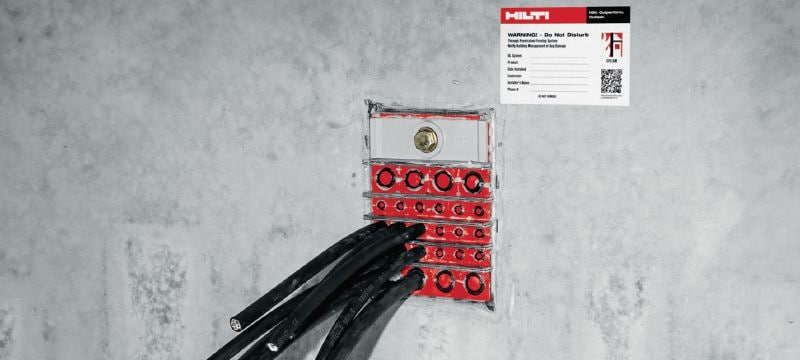

Transit frames for fitting modules to seal existing cable/pipe penetrations in concrete walls and floors
- Dimensions (LxWxH): 60 x 880 x 357 mm
- Number of frame columns: 6
- Number of frame rows: 1
Customers also searched for Multi Cable Transit.
Choose options
Frame size
- 8
Number of frame columns
- 6
Base materials
- Concrete
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
EUR685,00
EUR685,00 / 1 Piece
Technical Data
Dimensions (LxWxH)
60 x 880 x 357 mm
Number of frame columns
6
Number of frame rows
1
Frame size
8
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
50 - -20 °C
Documents
Features & Applications
Features

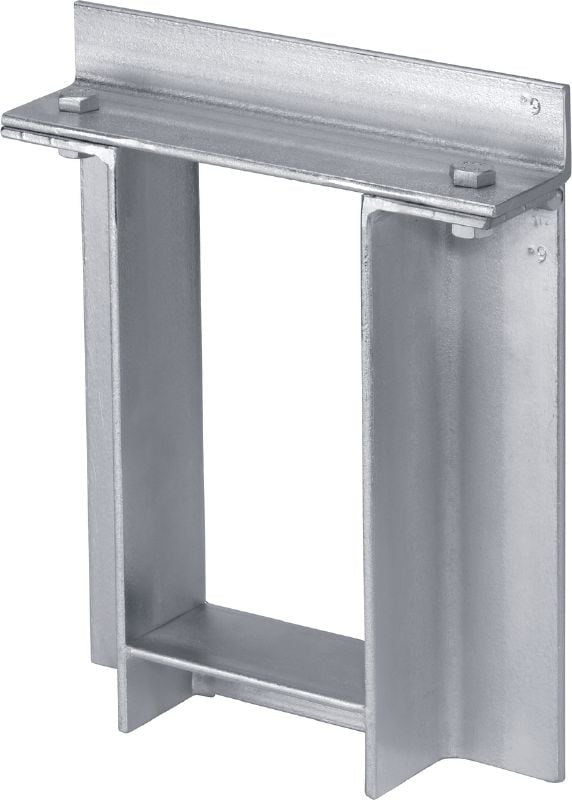

- Removable top with bolts for installing around existing cable installations
- Available with single- and multiple-frame windows in various sizes within single-row or double-row frames
- Available in electrolytically galvanised steel (grade S235 JR)
Applications
- Wall and floor penetrations in concrete, masonry and lightweight walls
Related Products
Software to assist the planning of sealing and fire protection around cables and pipes, in addition to a 3D PDMS Library
Wedge-puller tool to quickly remove the compression wedge when retrofitting additional cables within a transit frame
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
Anchor plate sets to secure cable modules within a transit frame and increase pressure-tightness
