CFS-C EL firestop endless collar
Solution to help create a fire and smoke barrier around pipes in non-standard configurations
- Dimensions (LxWxH): 2580 x 52 x 5.6 mm
- Approvals: ETA-14/0085
- Base materials: Drywall, Concrete (aerated), Concrete, Masonry, Shaft wall, Wood
ultimate
Customers also searched for fire collar, intumescent collar, Intumescent Fire Collar for Pipes or Firestop bandage.
Technical Data
Dimensions (LxWxH)
2580 x 52 x 5.6 mm
Approvals
ETA-14/0085
Base materials
Drywall, Concrete (aerated), Concrete, Masonry, Shaft wall, Wood
LEED VOC
11 g/l
Pipe diameter - range
16 - 160 mm
Length
2580 mm
Height
6 mm
Product class
Ultimate
Application temperature range
-5 - 50 °C
Temperature resistance range
-30 - 80 °C
Documents
Features & Applications
Features

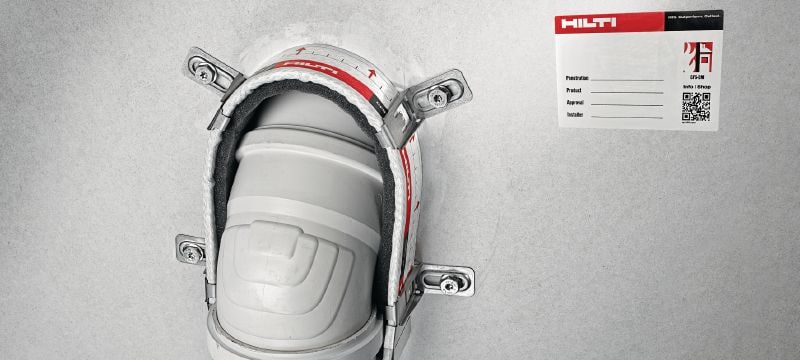

- Problem-solver for non-standard pipe configurations – including pipe elbows, inclined pipes and pipes with limited clearance to the wall
- Space-saver – zero distance to CFS-C EL firestop endless collar, Conlit and CFS-B firestop bandage
- Endless solution – one product for most penetrant sizes
- Installed outside of the base material – can be visually inspected easily
- Well-suited to complex pipe configurations
Applications
- Configurations tested include pipe elbows, inclined pipes and pipes with limited clearance to the wall
- Zero distance required to CFS-B firestop bandage, CFS-C EL firestop endless collar and Conlit
- Suitable for use on shaft walls, coated board, plasterboard, aerated concrete, masonry and concrete
- Approved for use with PVC, PP, PE and a wide array of standard acoustic pipes.
- Acoustic pipes tested with insulation and sound decoupling
For approval or certificate information, please see individual items.
