CFS-F FX Flexible firestop foam

Firestop foam CFS-F FX #429802

Configurator
Technical Data
Documents
Features & Applications
Related Products
Firestop Sealant
CP 660/CFS-F FX (7542)
L069767.tiff
CFS-F FX (85857)
FS Fx Foam cable tray wo ID plate, CP_660_F_FX_16329.tif
Firestop Block Power

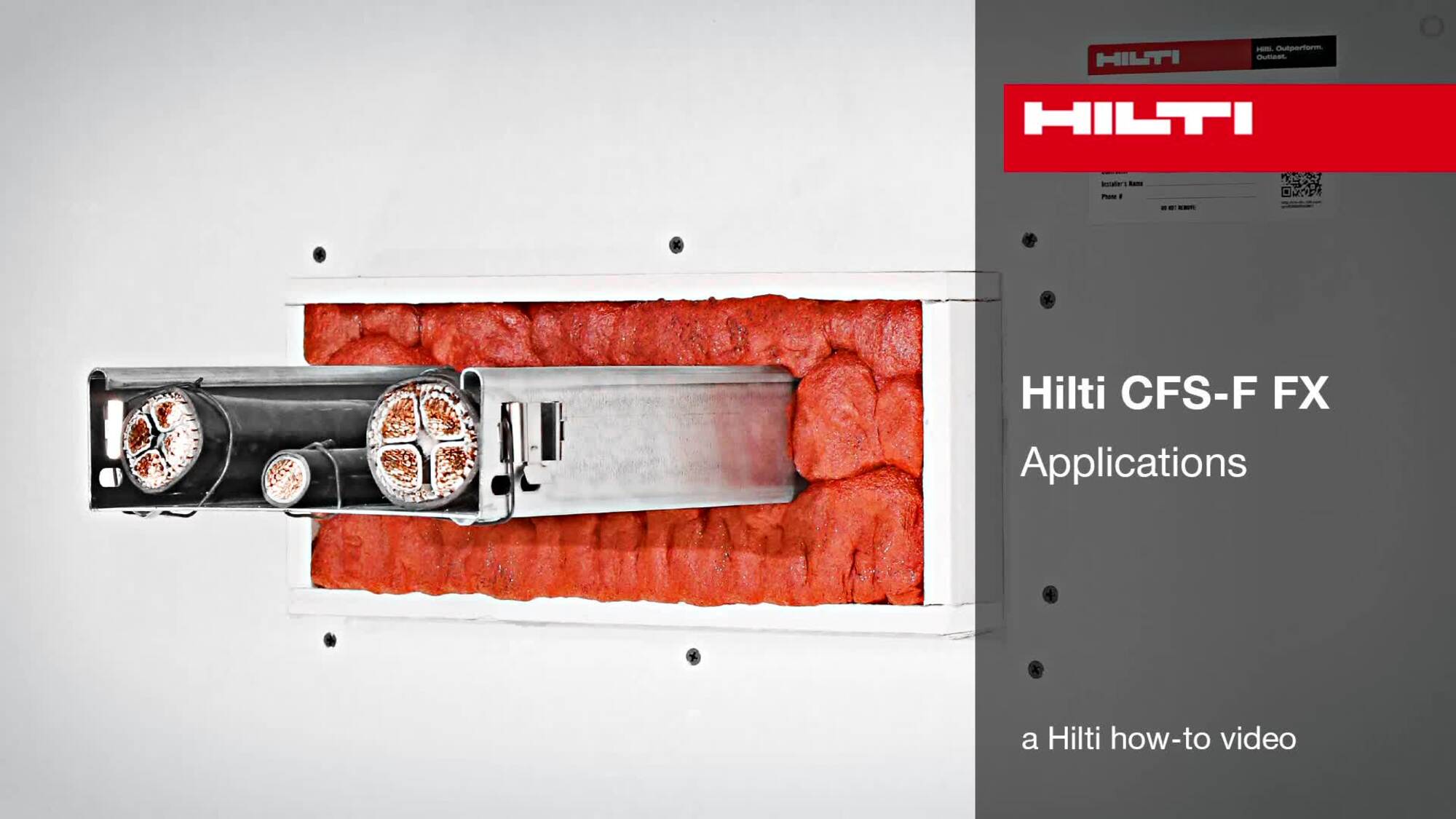

Easy-to-install flexible firestop foam to help create a fire and smoke barrier around cable and mixed penetrations

  • Base materials: Concrete, Masonry, Drywall, Wood
  • Approvals: ETA-10/0109
  • Approx. curing time: 10 min
ultimate

Customers also searched for Acoustic , Expanding Foam, Movement or Fast Quick.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR100,01
EUR100,01 / 1 Piece

Technical Data

Base materials
Concrete, Masonry, Drywall, Wood
Approvals
ETA-10/0109
Approx. curing time
10 min 1
Application temperature range
10 - 35 °C
Colour
Red
Content per can/cartridge
325 ml
Chemical basis
Two-component polyurethane foam
Required dispenser
HDM 330, HDE 500
LEED VOC
26 g/l
Acoustics performance
Test report available
Product class
Ultimate
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-30 - 60 °C
  1. at 75°F/24°C, 50% relative humidity

Documents

HSE Information
Technical information
Approval document
Declaration of performance
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf VOC_CDPH_CFS-F FX_EN, English [ 125.1 KB ]

Features & Applications

Features

  • Versatile – seal around single cables, bundles, trays, trunking and mixed penetrations (metal and plastic pipes) with the same firestop foam
  • Future-proof – re-penetrable to allow future cable capacity increases
  • Easily shaped during curing phase – leftover firestop foam can be cut and reused
  • Single-sided installation possible
  • Simpler to install – polyurethane firestop foam with no additional sealing or backfilling material needed

Applications

  • Electrical: cables, cable bundles, cable trays and cable trunking, mixed penetrations
  • Repenetration with single cables
  • Combi approvals with firestop blocks especially for large openings or applications in specialist industry applications (telecom, industrial)
  • Clima-split air-conditioning services
