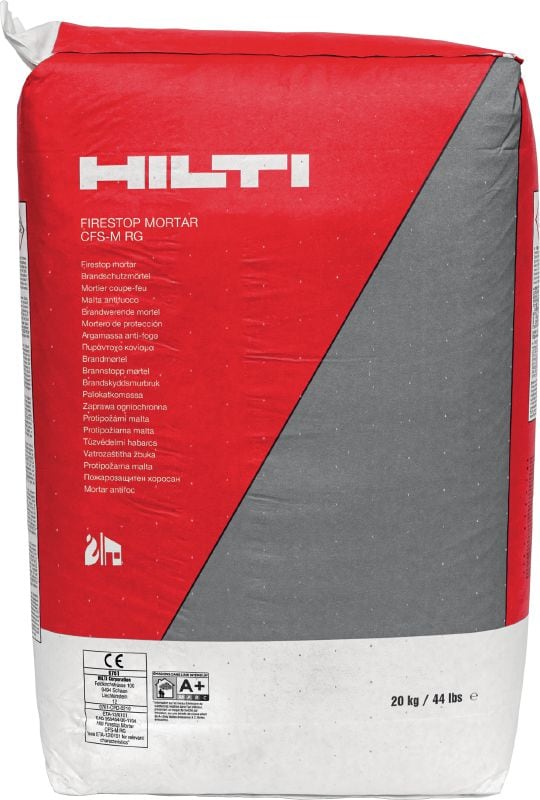

CFS-M RG Firestop mortar
Firestop mortar to help prevent fire and smoke from spreading through large openings with cable, pipe and mixed penetrations
- Base materials: Concrete, Aerated concrete, Masonry
- Colour: Grey
- Approx. mix ratio: 2.5:1 (mortar to water by weight)
ultimate
Customers also searched for CP 636.
Technical Data
Base materials
Concrete, Aerated concrete, Masonry
Colour
Grey
Approx. mix ratio
2.5:1 (mortar to water by weight)
Cured density - range
700 - 900 kg/m³
Max. compressive strength after 28 days
2.5 N/mm²
Storage and transportation temperature range
5 - 30 °C
Application temperature range
5 - 30 °C
Temperature resistance range
-10 - 80 °C
Can be painted
Yes
Product class
Ultimate
Documents
Features & Applications
Features
- Easier to install – consistency can be varied for application with a trowel or commercially available pumps
- Excellent thermal insulating properties
- Minimal shrinkage during curing and no spalling in event of fire
- Paintable
Applications

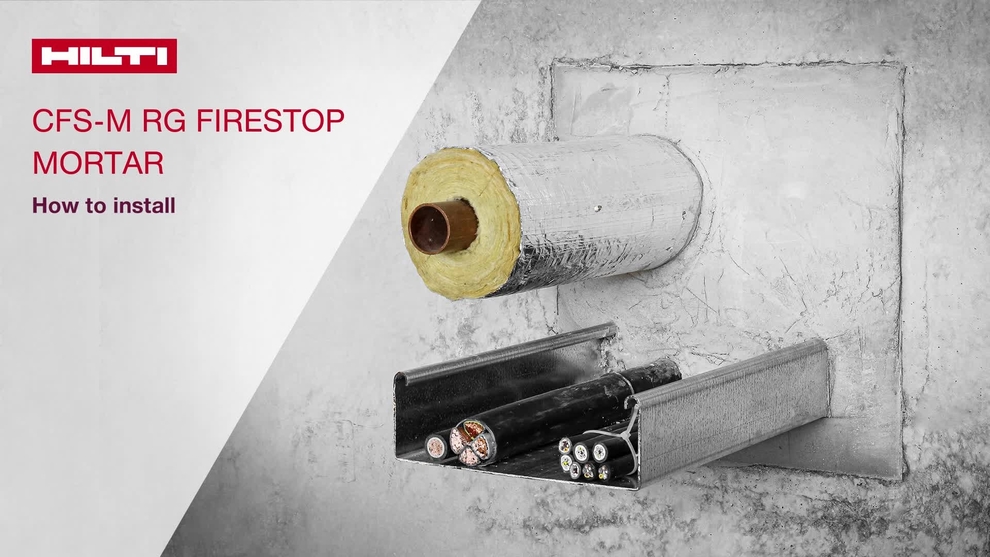

- Mixed penetrations in rigid walls and floors from 150 mm
- Cables, cable bundles, cable trays and cable conduits
- Non-combustible (metal) pipes with non-combustible insulation
- Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage
- Combustible pipes in combination with CFS-C firestop collar, CFS-C P firestop collar or CFS-W firestop wrap
For approval or certificate information, please see individual items.
Related Products
ETA-compliant retrofit premium firestop collar to help create a fire and smoke barrier around existing pipes between 50-250 mm
Pre-cut intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations
Intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations
