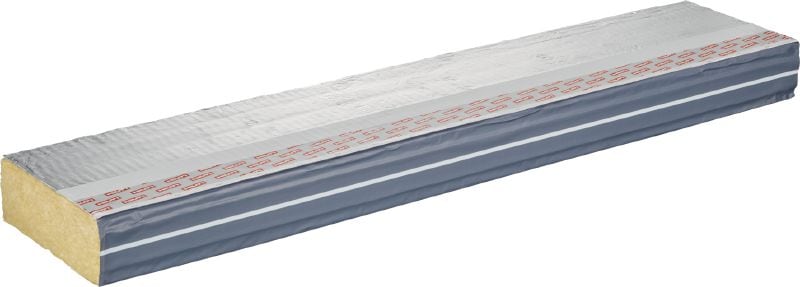

Pre-formed intumescent fire cavity barrier for ventilated façades

  • Approvals: BS, BS 476-20, UL
  • Length: 1000 mm
  • Application: Ventilated façade
ultimate

Technical Data

Approvals
BS, BS 476-20, UL
Length
1000 mm
Application
Ventilated façade
Movement
No
Storage and transportation temperature range
-10 - 40 °C
Product class
Ultimate

Documents

Features & Applications

Features

  • Faster, easier installation – cavity barriers arrive on-site ready to fasten in place using the included stainless steel brackets
  • Verified fire resistance – tested according to Association for Specialist Fire Protection (ASFP) TGD 19
  • Extensive range – barriers and brackets available for most common cavity widths
  • Design support available – contact your local Hilti Building Envelope Specialists for advice on complex passive fire protection detailing

Applications

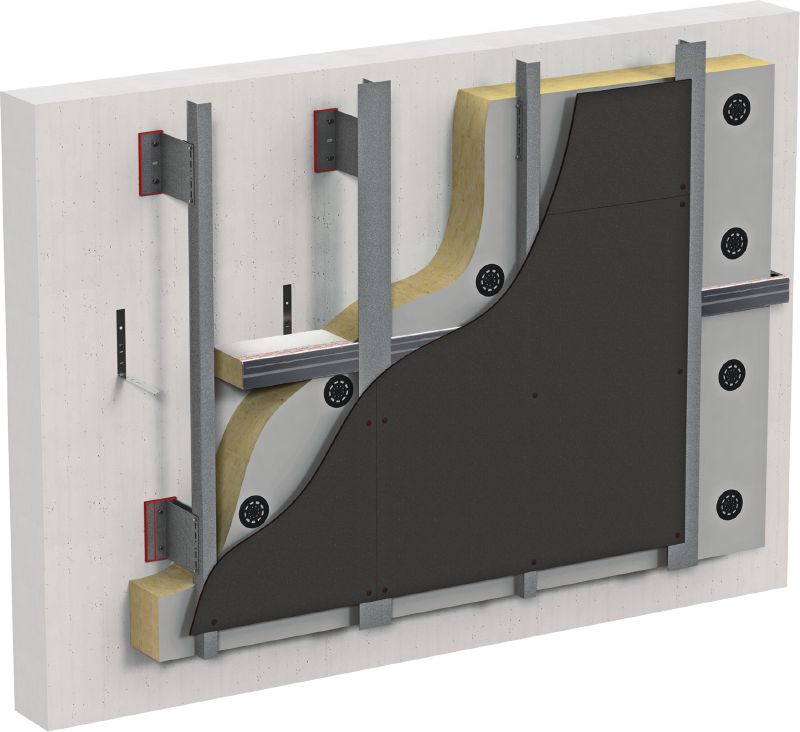

  • Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding facades with gaps of 25 mm or less
  • Providing up to 60 minutes fire integrity and 30 minutes insulation according to TGD19
  • Providing up to 90 minutes fire integrity and 60 minutes insulation according to BS476-20

For approval or certificate information, please see individual items.
