MT-BR-40 Bracket

Configurator
Technical Data
Features & Applications
Related Products
LCG004140_v1 (5213574)
L160791_cropped (5371379)
L160849_cropped (5371381)

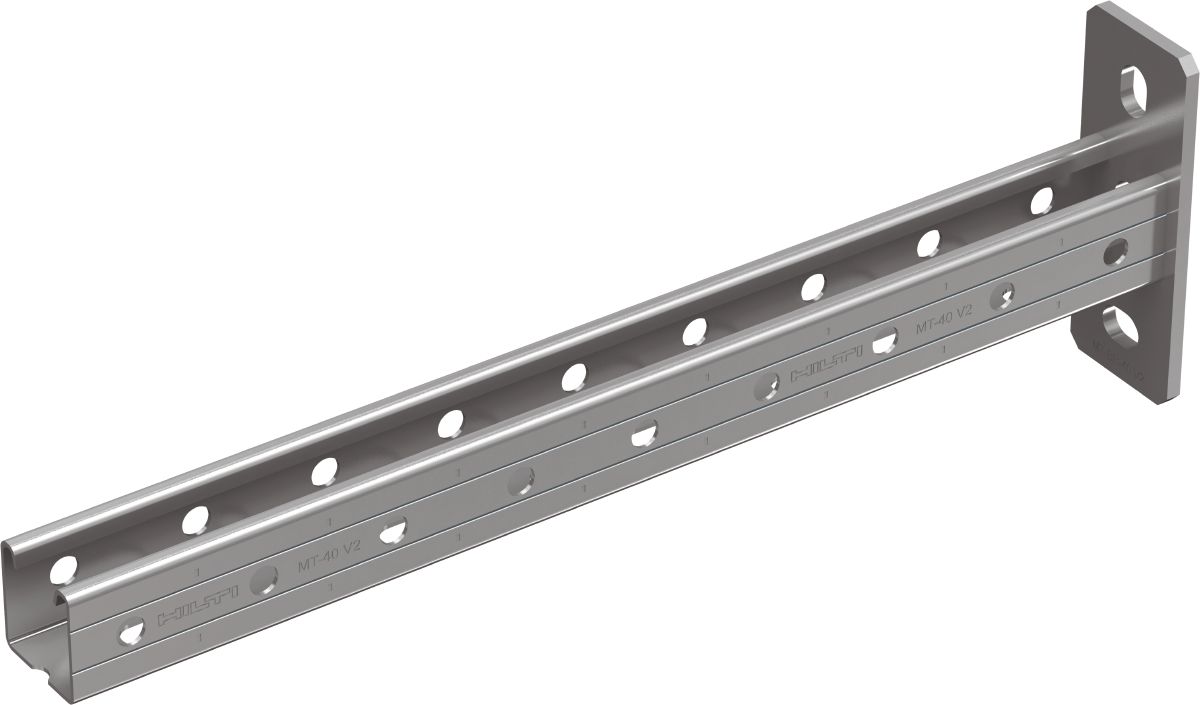

Medium-duty C-Channel bracket for indoor applications

  • Material composition: S275JR - EN 10025
  • Surface finish: Electrogalvanized - for dry indoor use only
  • Material thickness: 1.75 mm

Choose options

Length - L
  • 42.5 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From EUR216,10

Technical Data

Material composition
S275JR - EN 10025
Surface finish
Electrogalvanized - for dry indoor use only
Material thickness
1.75 mm
Environmental conditions
Indoor, dry conditions
Length - L
42.5 mm

Features & Applications

Features

  • High performance, less weight – optimised hole pattern for improved load efficiency and compatible with our MT-BR-AB angle brace for even higher performance
  • Simpler and easier to instal – compatible with the Hilti MT Fast-Lock and Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • More sustainable – made with up to 11% less steel than the previous generation and available with an Environmental Product Declaration (EPD) for greater CO2 transparency
  • Easier identification – added queues along the sides of the C-Channel bracket to help identify load classes and provide a more aesthetic finish
  • Adjustable – two slotted holes simplify leveling and fine adjustment

Applications

  • Supporting pipe rings, ventilation ducts, cable trays and other MEP support hardware
  • Mounting light-duty MEP installations on concrete and steel
  • Wall-mounted cantilever brackets for heavier pipes
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
