MRG 2,0-F Roll connector

Roll connector MRG 2.0 M10/12-F #304213

Configurator
Technical Data
Documents
Features & Applications
Related Products
MRG 2,0

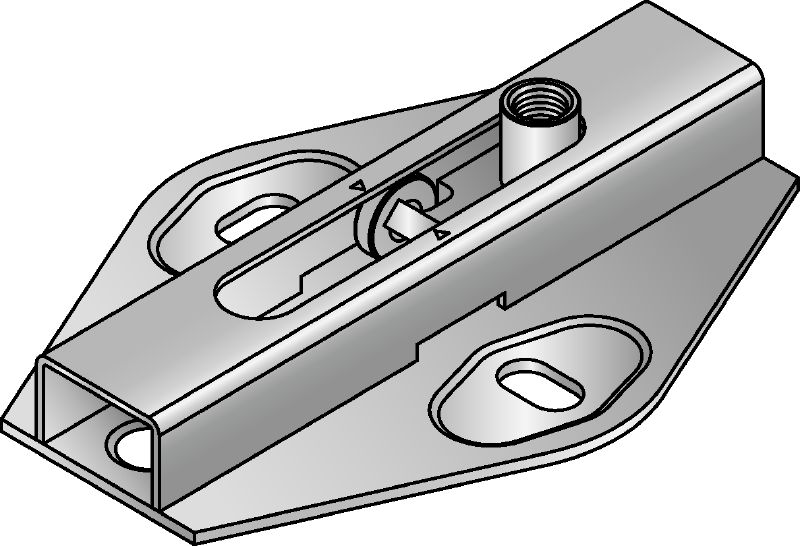

Hot-dip galvanised (HDG) roll connector for medium-duty heating and refrigeration applications

  • Thread connection - M: M10, M12
  • Height - H: 31 mm
  • Maximum load - F: 1.5 kN

Choose options

Thread connection - M
  • M10, M12
Height - H
  • 31 mm
Maximum load - F
  • 1.5 kN
Pack size
  • 5 pc
 Product options
Quantity
Packs
Total Pieces
5
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR564,60
EUR112,92 / 1 Piece

Technical Data

Thread connection - M
M10, M12
Height - H
31 mm
Maximum load - F
1.5 kN
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Max. displacement
80 mm
Coefficient of sliding friction
0.15
Length - L
172 mm
Weight
0.68 kg

Documents

Sustainability Documentation
Operating Instruction
pdf  EPD_Pipe Fixation (Metal/Polym, English [ 2.1 MB ]

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened base plate fits MQ modular support system
  • Smooth rolling movement on coated runner in both directions in axial pipe direction
  • High temperature resistance up to 300°C – no plastic parts

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • Single-point fastening of pipes or in combination with modular support systems
  • Recommended for use in moderately corrosive outdoor and indoor environments
