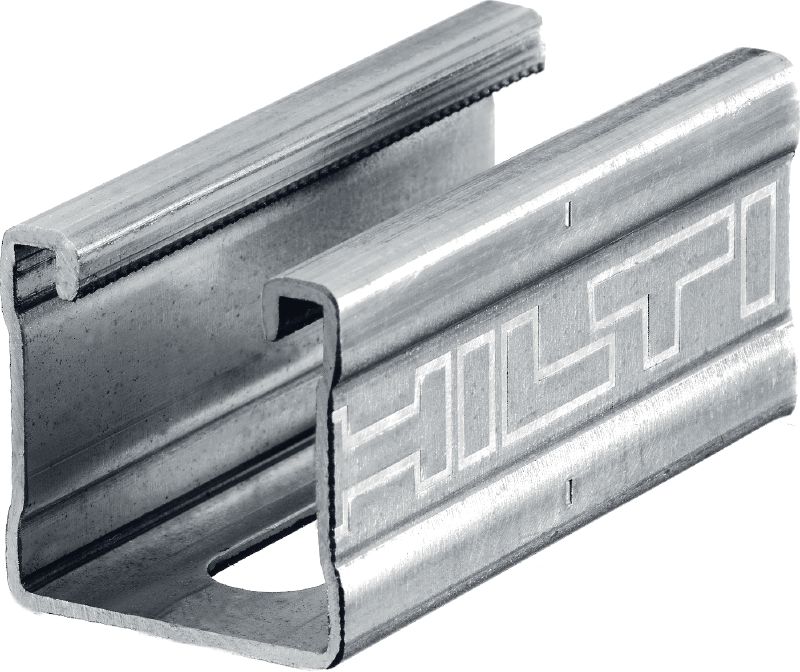

MQ-41-R C-Channel profile
Stainless steel (A4) C-Channel profile for medium-duty applications
- Height: 41.3 mm
- Material thickness: 2 mm
- Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Technical Data

Height
41.3 mm
Material thickness
2 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Documents
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimised hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for installation in industrial atmospheres or areas with heavy condensation
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
For approval or certificate information, please see individual items.
