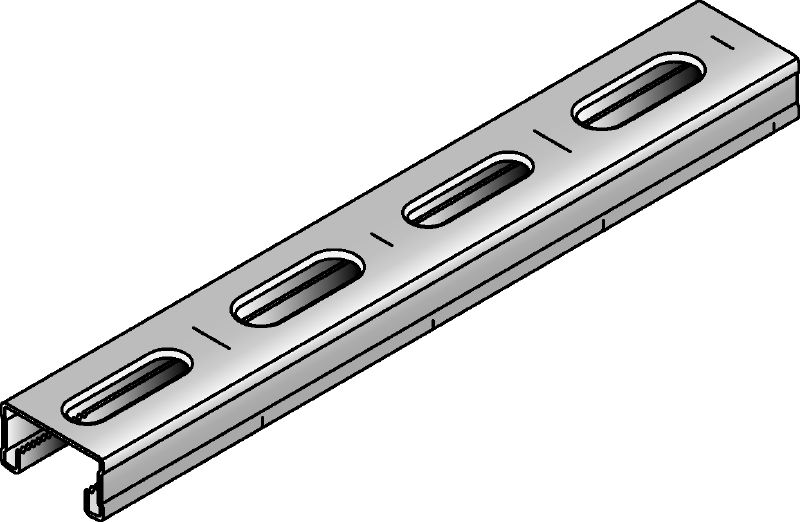

MM-C-16 C-Channel profile

I.-Channel MM-C-16 2m #418748

Configurator
Technical Data
Documents
Features & Applications
Related Products
MM-C-16
L036248.tif
MM

Galvanised C-Channel profile for light-duty applications

  • Height: 16 mm
  • Material thickness: 1 mm
  • Material composition: S250GD - DIN EN 10346

Choose options

Length
  • 2 m
Pack size
  • 16 m
 Product options
Quantity
Packs
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR144,96
EUR9,06 / 1 m

Technical Data

Height
16 mm
Material thickness
1 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
1115 g

Documents

pdf Fastening of MM channels with Hilti power-actuated fasteners - 2024, English [ 923.8 KB ]

Features & Applications

Features

  • C-profile with serrated edges – for optimised pull-out and shear capacity
  • Optimised back slots – for quicker, more flexible anchor fastening
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Modular installation channel system – for versatility and flexibility
  • The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)

Applications

  • Light- and medium-duty pipe support system
  • Fastening ventilation ducts and cable trays
  • Recommended for use in dry interiors
  • Recommended for use in dry interiors
