MM-C-30 C-Channel profile
I.-Channel MM-C-30 3m M10 #418776

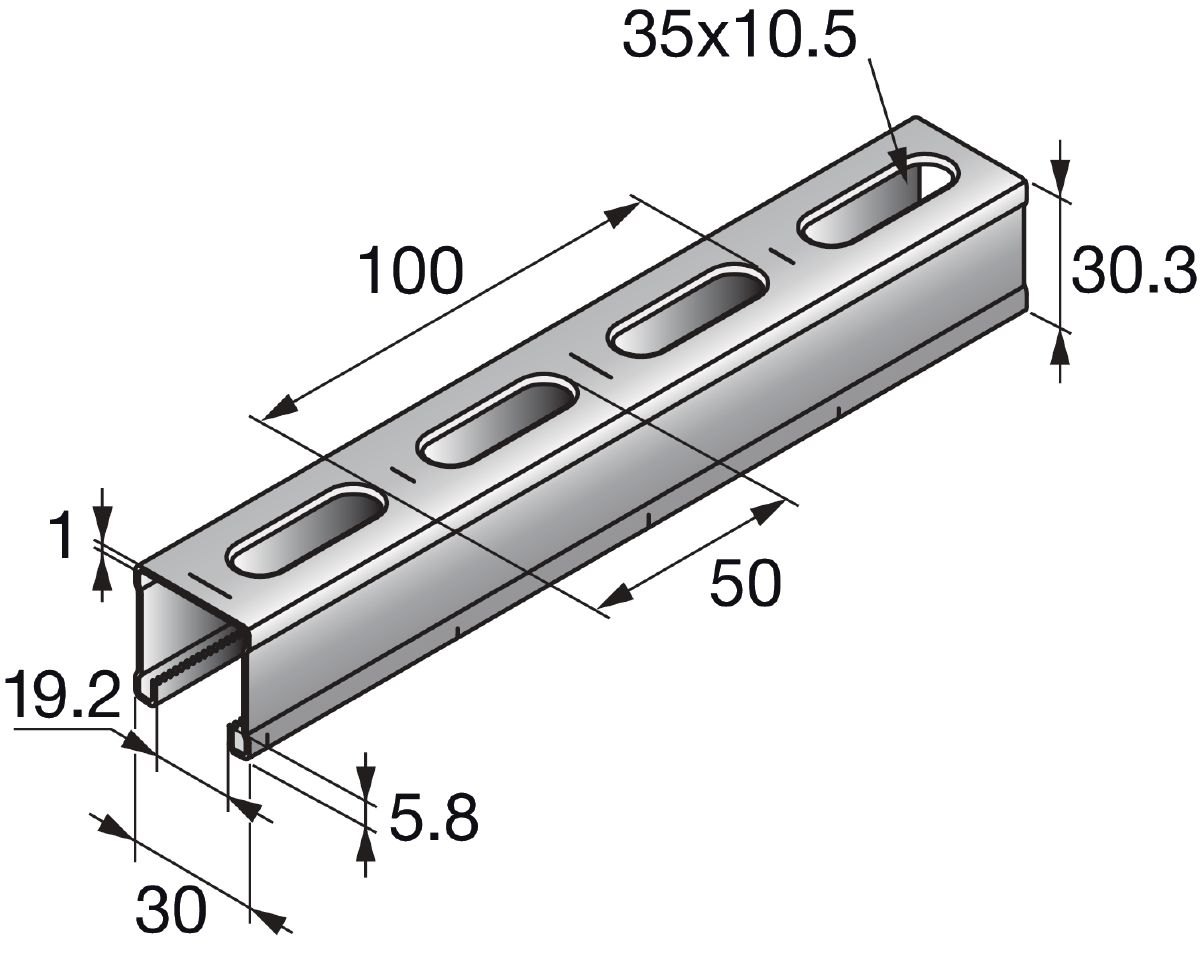

Galvanised C-Channel profile for light-duty applications
- Height: 30 mm
- Material thickness: 1 mm
- Material composition: S250GD - DIN EN 10346
Choose options
Length
- 3 m
Pack size
- 18 m
Quantity
Packs
Total Pieces
18
Discounted net
EUR223,20
EUR12,40 / 1 m
Technical Data

Height
30 mm
Material thickness
1 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
2310 g
Documents
Features & Applications
Features
- C-profile with serrated edges – for optimised pull-out and shear capacity
- Optimised back slots – for quicker, more flexible anchor fastening
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Modular installation channel system – for versatility and flexibility
- The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)
Applications
- Light- and medium-duty pipe support system
- Fastening ventilation ducts and cable trays
- Recommended for use in dry interiors
- Recommended for use in dry interiors
