MRP-KF Quick-close refrigeration pipe clamp
High-density refrigeration pipe clamp with quick closure for high productivity for heavy-duty in refrigeration applications
- Noise reduction: 16 dB (A)
- Temperature resistance: -50 - 110 °C
- Surface finish: Indoor Coated - Electro galvanised
ultimate
Choose options
Diameter - D
- 12.7 mm
- 15.8 mm
- 17.2 mm
- 18 mm
- 21.3 mm
- 22 mm
- 26.9 mm
- 28 mm
- 33.7 mm
- 35 mm
- 42.4 mm
- 48.3 mm
- 50 mm
- 54 mm
- 57 mm
- 60.3 mm
- 64 mm
- 70 mm
- 76.1 mm
- 88.9 mm
- 108 mm
- 114.3 mm
- 133 mm
- 139.7 mm
- 159 mm
- 168.3 mm
- 204 mm
- 219.1 mm
Thread connection - M
- M12, 1/2 in
- M16, 3/4 in
- M8, M10, 1/2 in
Pack size
- 1 pc
- 4 pc
- 5 pc
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From EUR143,00
Technical Data
Noise reduction
16 dB (A)
Temperature resistance
-50 - 110 °C
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Ultimate
Diffusion resistance
Vapor retardant due to the closed-cell structure of the rigid PUR foam
Thermal conductivity (λ approx. value)
0.043 W/mK
Compressive strength
2.4 N/mm²
Approx. density
250 kg/m³
Documents
Features & Applications
Features
- Two-part pipe clamp with innovative closure mechanism for quicker, easier installation
- The closure mechanism allows two-sided closure as well as one-sided pre-assembly of the pipe clamp half-shells
- Integrated metal pipe clamp in the insulation material for optimum load transfer
- No sealant required – vapour diffusion-resistant thanks to sealing tape

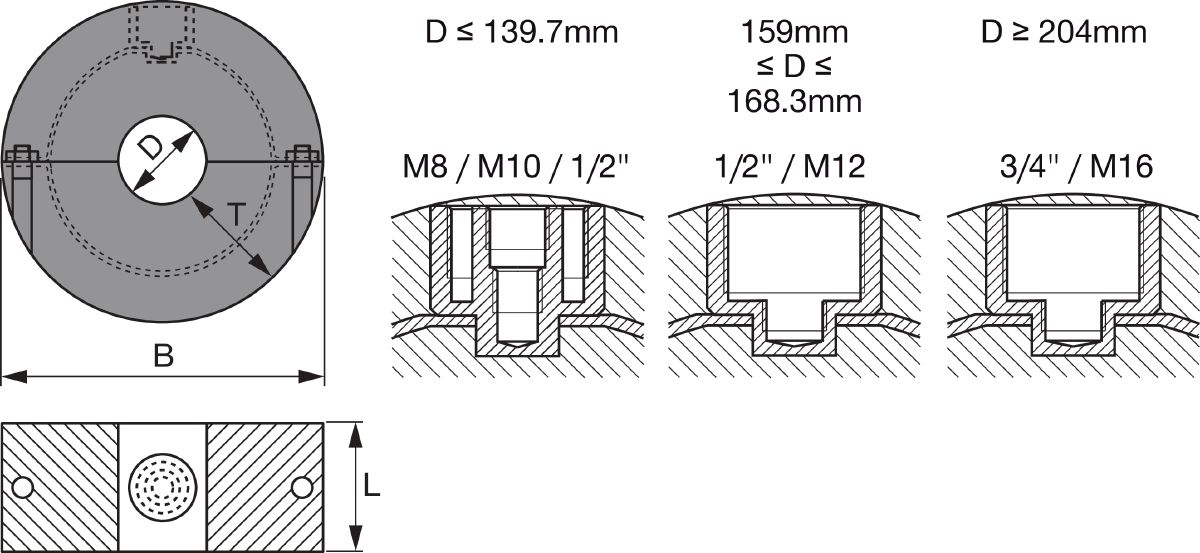

- Three-way connection boss – M8, M10, 1/2" (12.7-139.7 mm diameter) or two-way connection boss M12, 1/2" or M16, 3/4" (159-219.1 mm diameter)
Applications
- Installing chilled water pipes up to 219 mm diameter in industrial and air conditioning applications
For approval or certificate information, please see individual items.
