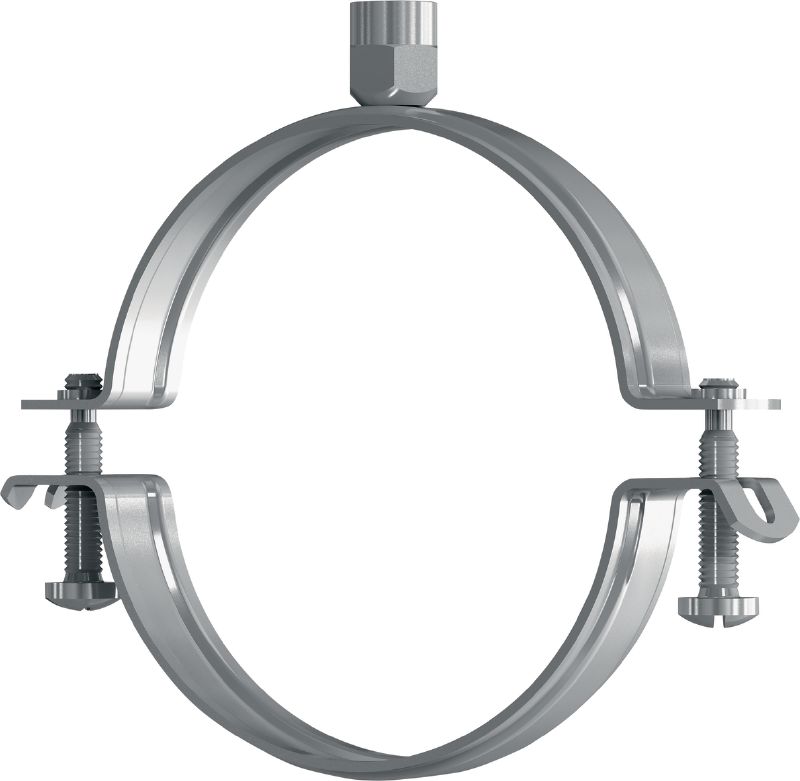

MV-P Ventilation pipe clamp
Vent. pipe ring MV-P 125 M8/M10 #2048128
Galvanised ventilation pipe clamp without sound insulation for high productivity in spiral duct applications
- Thread connection - M: M8, M10
- Maximum load - F: 700 N
- Material composition: DD11 - DIN EN 10111
Choose options
Thread connection - M
- M8, M10
Nominal pipe size
- 125 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
EUR117,50
EUR4,70 / 1 Piece
Technical Data
Thread connection - M
M8, M10
Maximum load - F
700 N
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
1.5 mm
Cross section width - b
20 mm
Width - B
172 mm
Distance centre pipe to top - h
80 mm
Documents
Features & Applications
Features
- Click closure – pipes in different diameters can be inserted and fastened quickly and conveniently using the vertical quick-lock closure
- Clamping ranges suitable for all standard-sized, folded spiral-seam ducts
- Ventilation pipe rings with M8/M10 connection head
Applications
- Fastening spiral-seam ducts as per DIN 24145/DIN EN 1506
