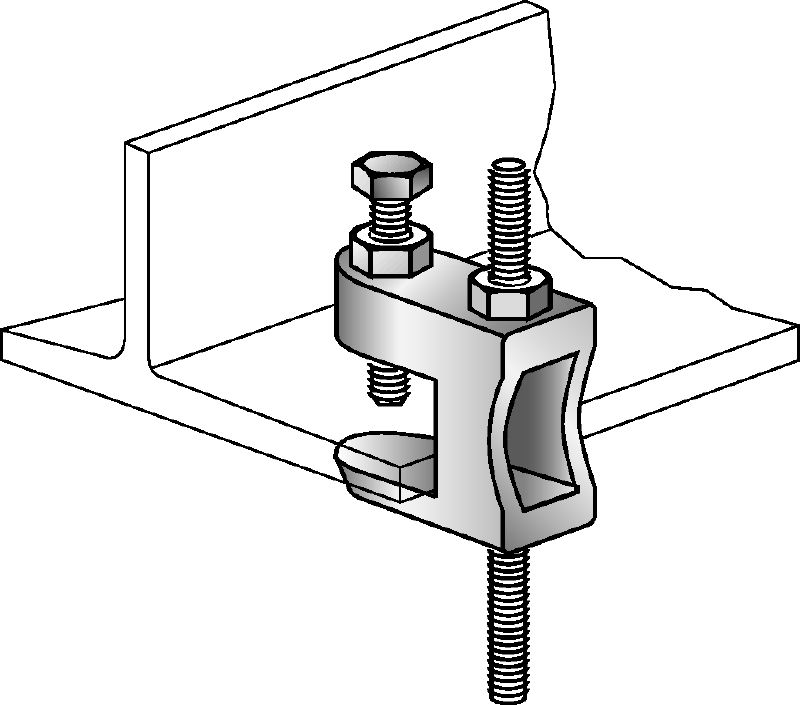

Galvanised beam clamp for fastening threaded rods to steel girders without internal thread

  • Base material type: Steel
  • Material composition: EN-GJMB – EN 1562
  • Surface finish: Indoor Coated - Electro galvanised

Technical Data

MAB_techndrawing_00375956.eps
Base material type
Steel
Material composition
EN-GJMB – EN 1562
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Load range
Medium-duty

Documents

Features & Applications

Features

  • Infinite height adjustment possible by loosening the lock nut, even after initial installation
  • Installation on steel beams requires no drilling or welding

Applications

  • Fastening threaded rods to steel girders without drilling or welding
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
