MQA-S Pipe clamp saddle

Pipe ring saddle MQA-S-M10 #2141907

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001770_v1 (187396)
MQA-S (83620)
MQA-S (83621)
MQA-S (83634)
L_CG001827_v4_cropped (188133)
L_CG001824_v3_cropped (188123)
L_CG001824_v3 (188124)
MQA-S (83670)

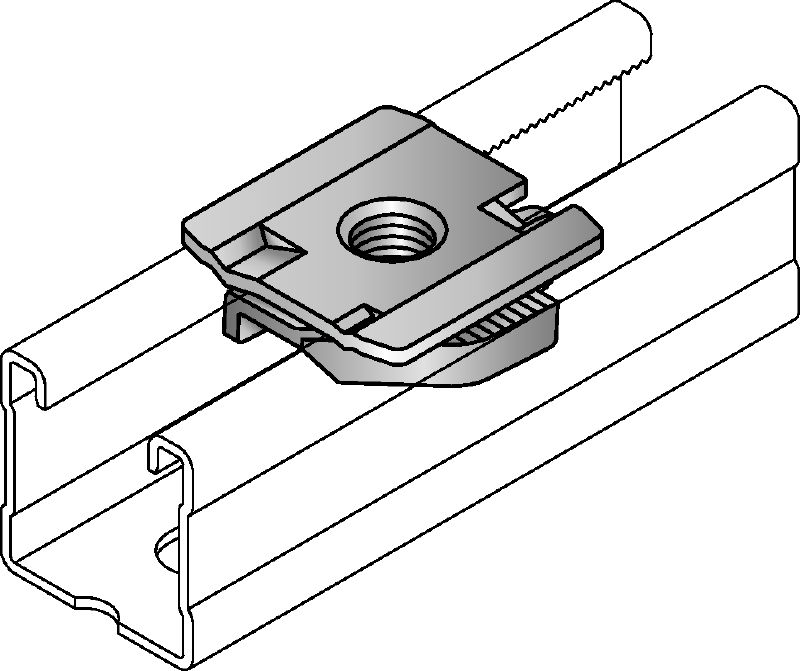

Galvanised pipe clamp saddle for connecting threaded components to MQ/HS channels

  • Product class: Premium
  • Tightening torque: 18 Nm
  • Thread connection - M: M10
premium

Choose options

Thread connection - M
  • M10
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR109,00
EUR2,18 / 1 Piece

Technical Data

Product class
Premium
Tightening torque
18 Nm
Thread connection - M
M10
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
53 g

Documents

Brochure
Approval document
Operating Instruction
pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]

Features & Applications

Features

  • Quick connection of threaded components to the open side of MQ strut channels
  • Easy installation and positioning within MQ strut channel openings
  • Single, compact part – for higher productivity and flexibility
  • Various thread sizes available
  • Robust single-part design without plastic components

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
  • Recommended for use in dry, interior environments
