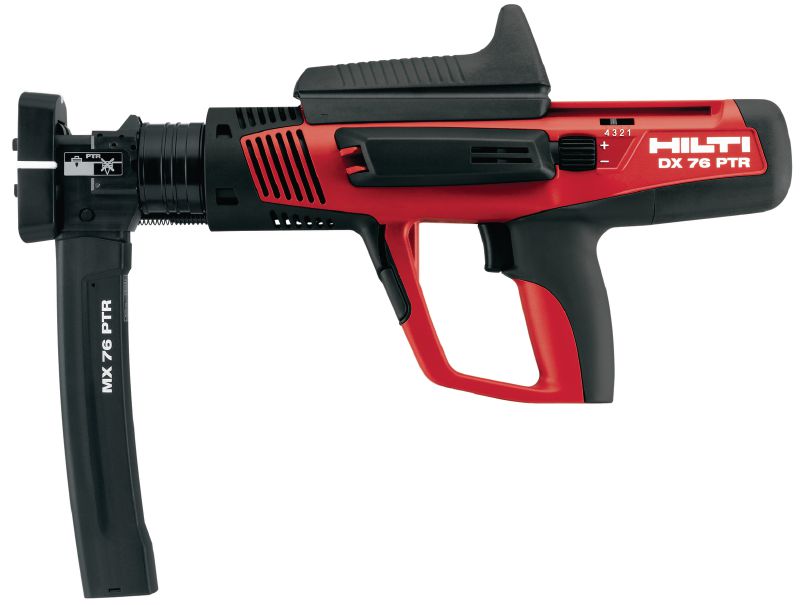

DX 76 PTR Powder-actuated tool

Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks

Dimensions (LxWxH): 464 x 104 x 352 mm
Weight: 4.37 kg
Fastener length range: 19 - 21 mm

Customers also searched for Hilti gun, powder actuated gun or nail gun.

Choose options

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occurred

Please contact us

Technical Data

Dimensions (LxWxH)

464 x 104 x 352 mm

Weight

4.37 kg

Fastener length range

19 - 21 mm

Automatic piston return

Bluetooth

Hilti Connect

Power (max.)

563 J

Power regulation

Yes

Piston type

X-76-P-ENP-PTR

Documents

pdf DX 76 Quick Start Guide [ 10.6 MB ]

Download

Features & Applications

Features

PTR also helps to deliver excellent fastening quality even on thin materials with a thickness of 3 mm or greater
Fastener magazine and rugged design for more reliable, efficient and quicker operation
Drives fasteners at the average rate of 600 per hour
Easy assembly and disassembly for on-the-spot maintenance – no tools required
Advanced ergonomic design

Applications

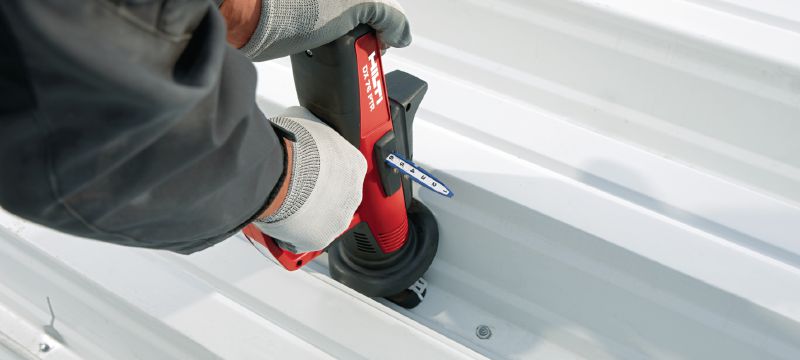

Fastening composite metal decks to steel structures with a minimum thickness of 3 mm (1/4") for composite decking
Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing
Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
Fastening grating elements to steel structures using grating accessories
Fastening shear connectors on steel structures with HVB accessories

For approval or certificate information, please see individual items.
