Nuron

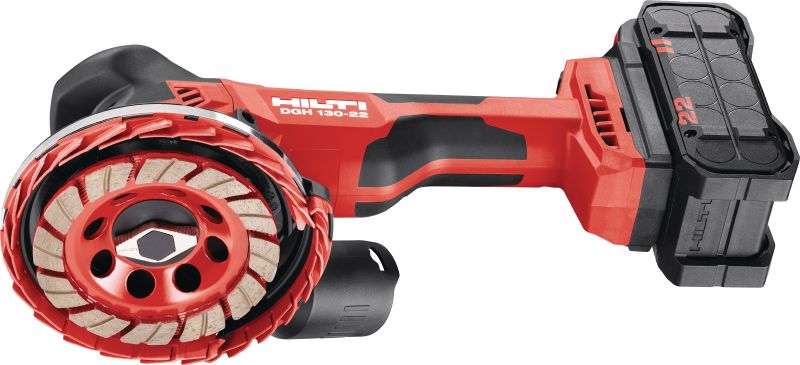

DGH 130-22 Cordless concrete grinder
Cordless concrete grinder with brushless motor for grinding concrete joints and finishing surfaces (Nuron battery platform)
- Rated voltage: 22 V
- Disc diameter: 125 mm
- Tool body weight: 2 kg
Technical Data
Rated voltage
22 V
Disc diameter
125 mm
Tool body weight
2 kg
No load RPM
gear 1: 3000 rpm; gear 2: 3650 rpm; gear 3: 4440 rpm; gear 4: 5400 rpm; gear 5: 6190 rpm; gear 6: 8000 rpm
Trigger type
Lockable on / off
Dimensions (LxWxH)
350 x 204 x 153 mm
A-weighted emission sound pressure level
85 dB (A) 1
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- No more extension cords – revolutionary Nuron batteries powering an efficient brushless motor make the DGH 130-22 our most mobile, efficient solution for everyday grinding and finishing tasks, especially when combined with the VC 4X-22 T15 cordless vacuum
- Save time and labour – cordless diamond grinding tools minimise your setup time, while six-step speed adjustment helps you grind as fast as the workpiece allows
- Improved comfort and control – slimline grip and padded head help you maintain control when working in virtually any position, especially overhead
- Safer jobsites – no extension cord means no tripping hazard, while a built-in vacuum connector facilitates virtually dustless grinding, and drop detection function shuts down the motor if the tool slips from your grip
- On the Nuron battery platform – cordless concrete grinding tools without compromise thanks to longer-lasting batteries, energy-saving cup wheels and a range of services to keep you productive, today and tomorrow
Applications
- Grinding concrete walls and ceilings to remove formwork marks
- Polishing visible concrete walls
- Grinding chamfers into concrete edges
For approval or certificate information, please see individual items.
