Nuron

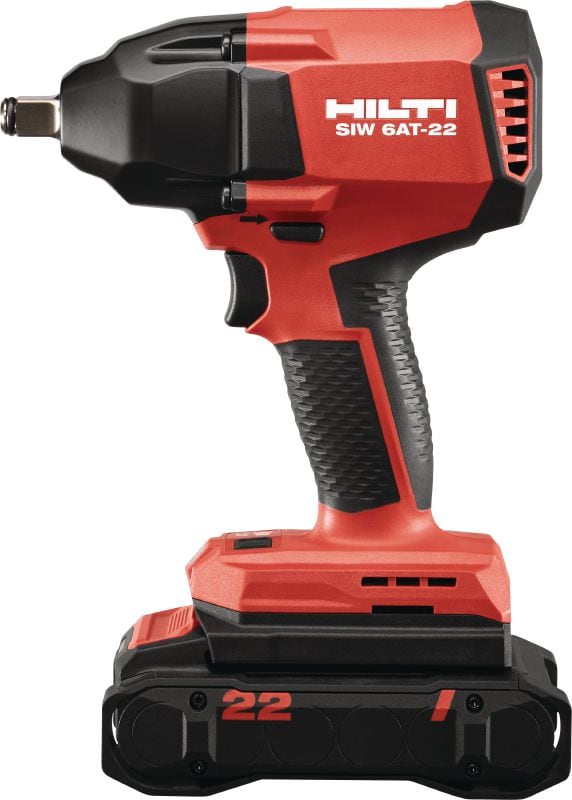

SIW 6AT-22 Mid-Torque impact wrench

Cordl. imp. wrench SIW 6AT-22 1/2" box #2365069

Configurator
Technical Data
Documents
Features & Applications
Related Products
L147995 (2954090)
L148002_cropped (3058864)
L148241_cropped (3058552)
L148256_cropped (3058542)
L148265_cropped (3058539)

Power-class 22V impact wrench with robust 1/2" friction ring anvil for faster and safer anchoring and bolting

  • Anvil type: 1/2" friction ring
  • Maximum torque: 300 Nm (1); 450 Nm (2)
  • Nut-busting torque: 650 Nm

Customise your kit

Tool body
Tool body with cardboard box
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR576,00

Technical Data

Anvil type
1/2" friction ring
Maximum torque
300 Nm (1); 450 Nm (2) 1
Nut-busting torque
650 Nm
Full hammering frequency
3500 impacts/minute
Number of gears
2
No load RPM
gear 1: 1550 rpm; gear 2: 1750 rpm
Dimensions (LxWxH)
182 x 72 x 220 mm
Tool body weight
1.8 kg
A-weighted emission sound pressure level
100 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 6AT-22 (03), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.3 MB ]

Features & Applications

Features

  • Compatible with the Hilti SI-AT-22 Adaptive Torque module for more controlled fastenings – helps to avoid over- or under-torque. Also compatible with Hilti stud anchors, cast-in anchors, installation systems and other controlled bolting applications
  • Faster concrete screw anchor setting from a more compact tool, thanks to the combination of brushless motor and next-generation Nuron batteries
  • More durable build – the brushless motor and friction ring anvil contribute to the longevity of our cordless impact wrenches
  • Faster anchor setting with more control – two speed settings and an improved LED light mean you can set larger fasteners more quickly and precisely
  • More comfortable to use – slimmer, 52 mm shorter and 0.4 kg lighter than its predecessor, helping to delay fatigue when bolting and anchoring all day

Applications

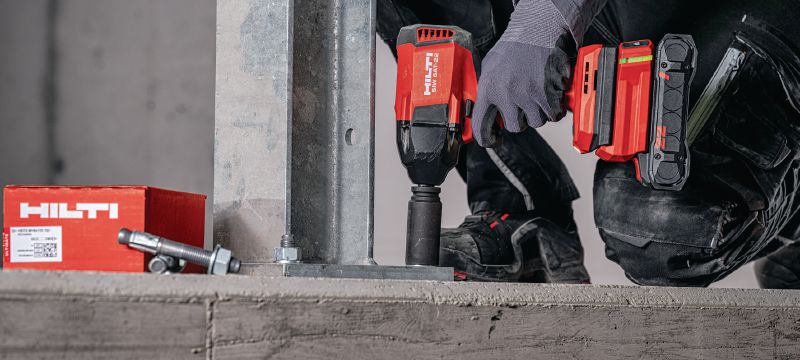

  • Setting HUS screw anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (8-16 mm diameter)
  • Setting Hilti stud anchors in concrete with Adaptive Torque module (M10-M24)

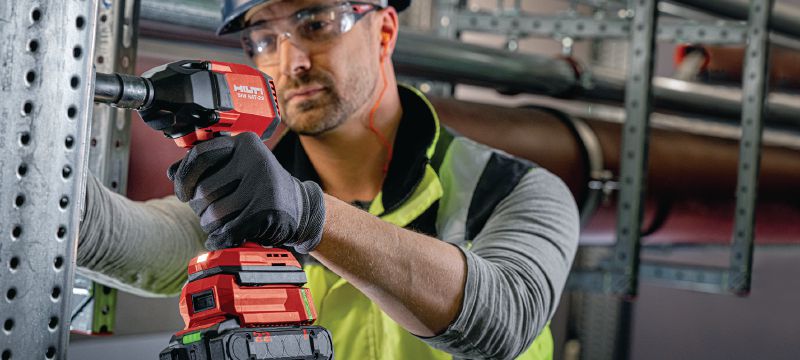

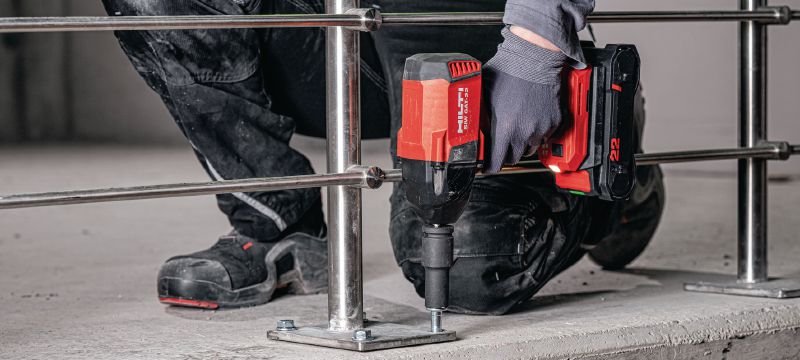

  • Bolting steel for primary and secondary steel structures, handrails, racking and machinery (M10-M20)
  • Lag bolting in wood for primary and secondary wood structures, wood roofs or temporary structures (8-16 mm diameter)
  • Setting Hilti MT installation system more quickly and safely with Adaptive Torque module
