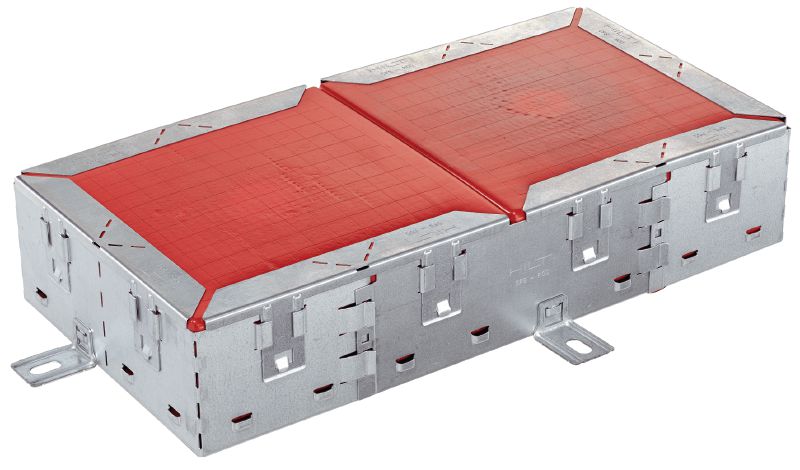

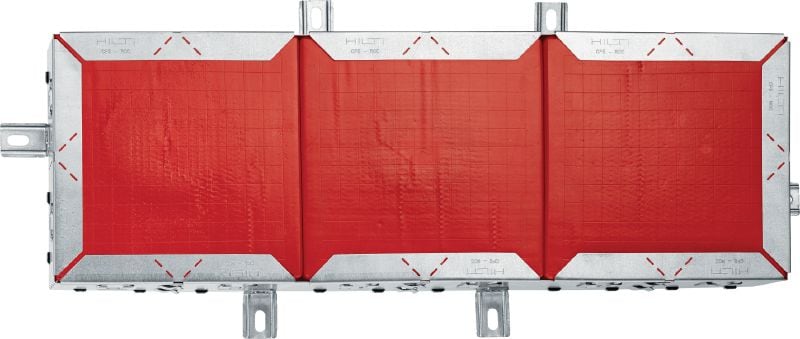

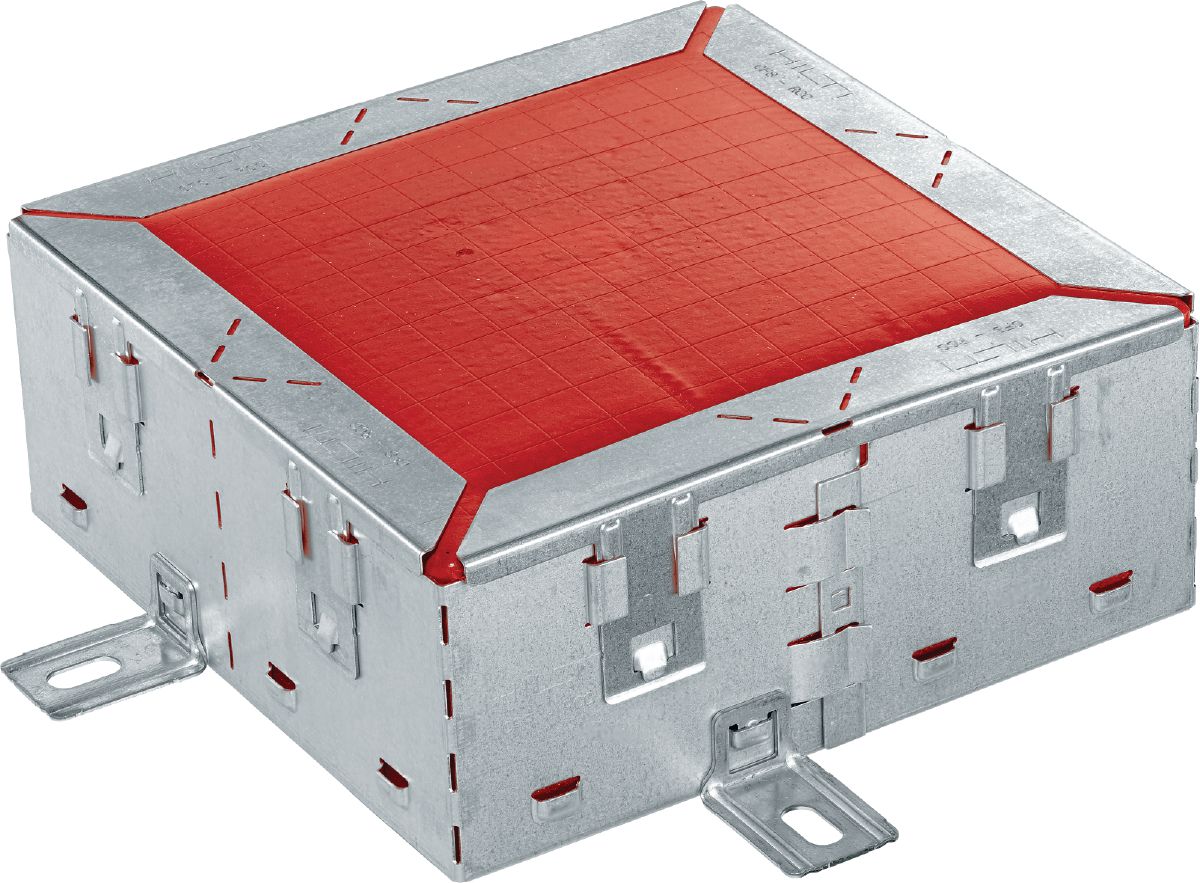

Solution for renovation of sealed cable-, tray- and mixed penetrations without removing existing, old firestop

  • Dimensions (LxWxH): 200 x 200 x 85 mm
  • Base materials: Concrete, Aerated concrete, Drywall, Masonry
  • Application temperature range: 5 - 40 °C
ultimate

Customers also searched for fire collar or intumescent collar.

Technical Data

Dimensions (LxWxH)
200 x 200 x 85 mm
Base materials
Concrete, Aerated concrete, Drywall, Masonry
Application temperature range
5 - 40 °C
Temperature resistance range
-15 - 60 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate

Documents

Features & Applications

Features

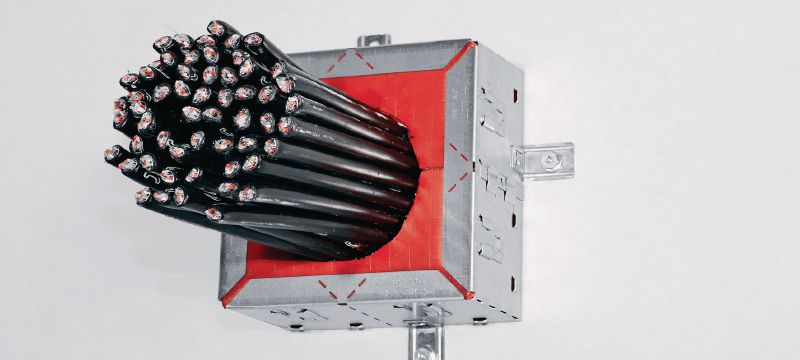

  • Broad approval range – cables, cable bundles up to 150 mm, trays, conduits and pipes (metal up to 114 mm and plastic up to 50 mm)
  • Surface-mounted solution with 100% cable fill
  • Optimised for irregular small and medium openings
  • Ideal for irregular small and medium openings
  • Re-penetrable to allow future increases in cable capacity

Applications

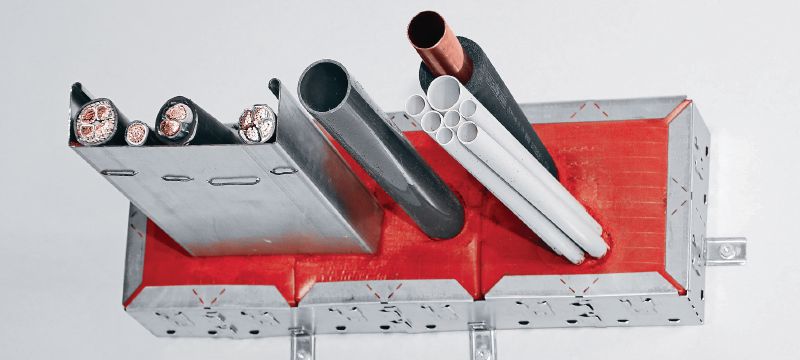

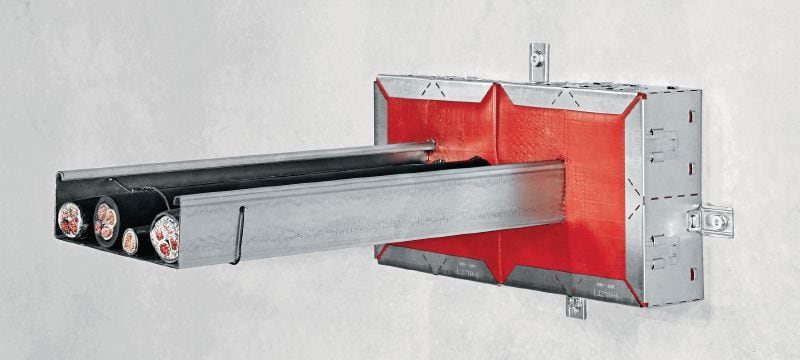

  • Flexible solution for single cables, cable bundles, cable trays, conduits and pipes in concrete, masonry and drywall applications

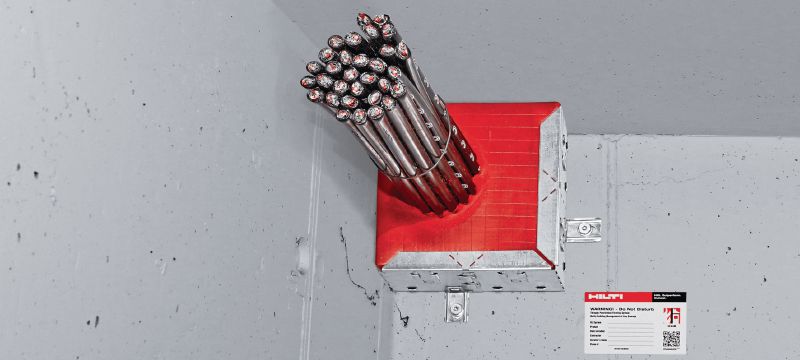

  • For new and existing penetrations in floors and walls
  • Especially suitable for renovation projects
  • Can be used to seal old/damaged fire compartment penetrations without removing the existing material

For approval or certificate information, please see individual items.
