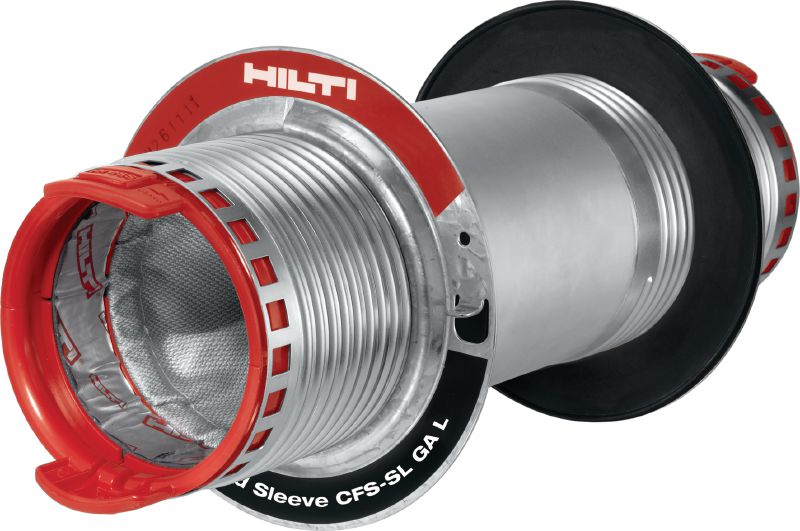

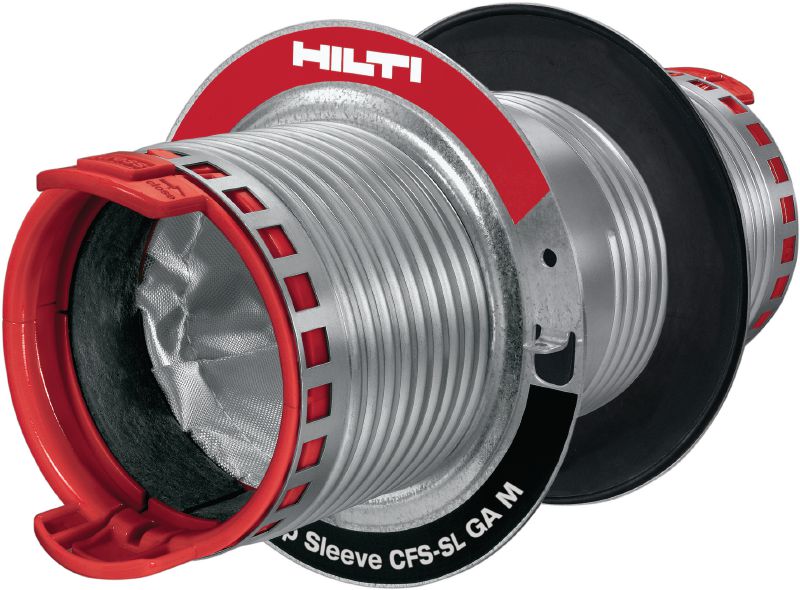

CFS-SL GA Extended Speed Sleeve

Configurator
Technical Data
Documents
Features & Applications
Related Products
L020720_V2 (182021)
L020721_V6_1 (192627)
L060909_v1_1 (192628)

Pathway device for high-traffic cabling with optimal airflow control

  • Base materials: Drywall, Concrete, Masonry, Wood, Sandwich panel, Aerated concrete
  • Reaction to fire class (EN 13501-1): E
  • Product class: Ultimate
ultimate

Customers also searched for Twisting Screw, Air Gas Tight, Cable Containment or Repenetration.

Choose options

Outside diameter
  • 63 mm
  • 113 mm
Length
  • 315 mm
  • 315
  • 415 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From EUR263,57

Technical Data

Base materials
Drywall, Concrete, Masonry, Wood, Sandwich panel, Aerated concrete
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate
Application temperature range
-5 - 50 °C
Temperature resistance range
-30 - 75 °C

Documents

Approval document
Technical information
Brochure
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA-20/1234_CFS-SL_GA_penetrations_2020_en, English [ 2 MB ]

Features & Applications

Features

  • Functional and compliant when properly installed
  • Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
  • Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
  • Superior smoke tightness and airflow control thanks to its twisting mechanism
  • Smoke gaskets eliminate need for sealant or putty

Applications

  • Sealing penetrations for single cables and cable bundles
  • Suitable for small to medium-sized circular openings in walls and ceilings
  • For use on plasterboard, concrete, masonry and sandwich panel
  • The ideal solution when cable configurations are regularly changed, such as in data centres, server rooms, hospitals, event halls or production plants

For approval or certificate information, please see individual items.
