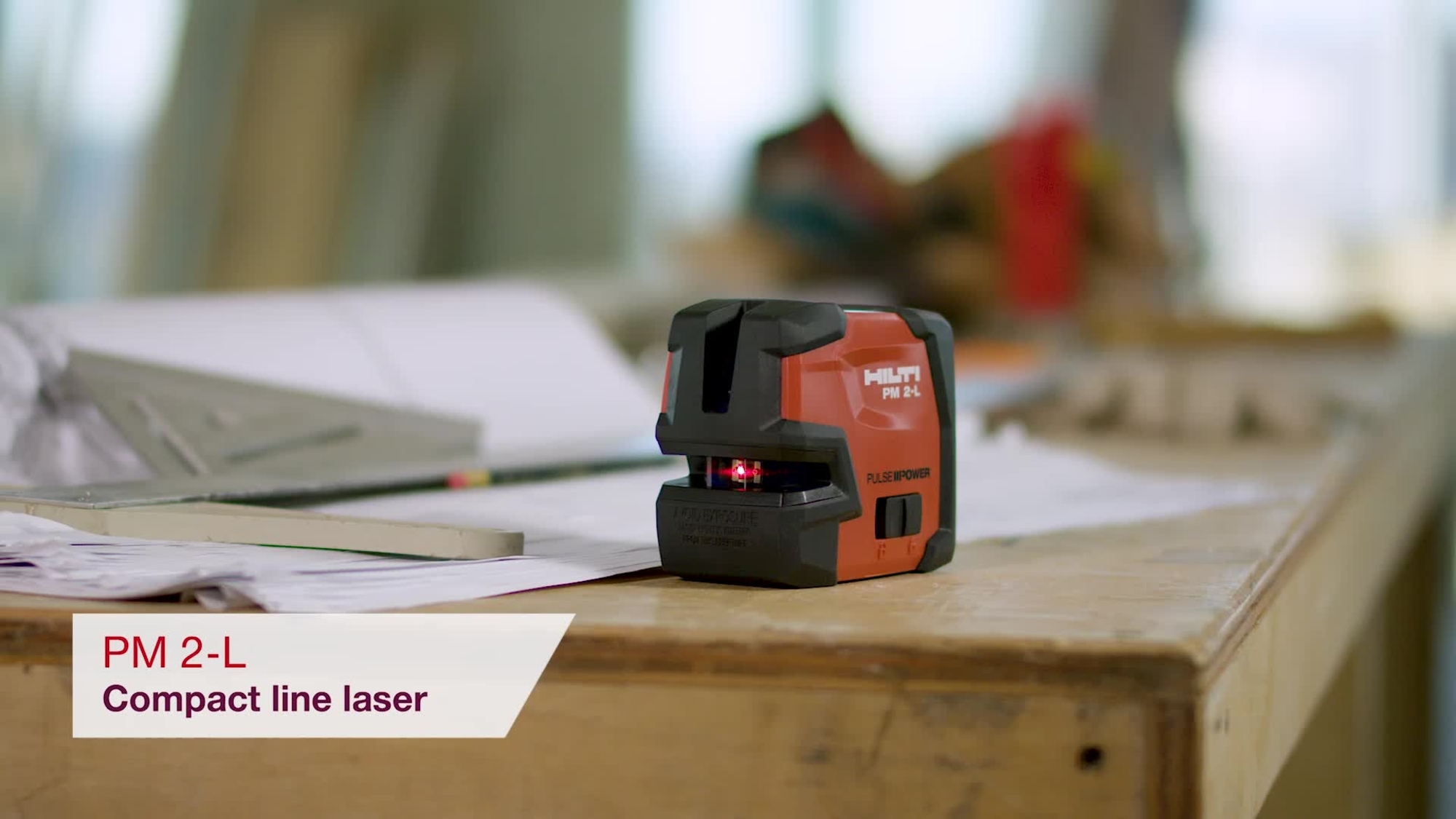

PM 2-L Line laser level
Line laser with 2 lines for levelling, aligning and squaring with red beam
- Accuracy: ±3 mm at 10 m
- Max. operating distance (diameter): 20 m (lines), 60 m (lines, with receiver)
- Maximum operating time: 14 h
Customers also searched for palm laser, laser level or cross laser.
Technical Data
Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
20 m (lines), 60 m (lines, with receiver) 1
Maximum operating time
14 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
±4 °
Self-levelling time
3 s
Horizontal fan angle
180 °
Vertical fan angle
135 °
IP protection class
IP 54 (EN 60529)
Laser type
Line
- Operating distance can be significantly affected by site conditions. See operating instructions.
Documents
Features & Applications
Features
- Compact size allows high-speed layout
- Rubber-coated housing and pendulum lock for higher robustness
- Out-of-level and low-battery alerts – help to prevent mistakes and unexpected downtime
- Laser class 2 – no special precautionary measures needed
Applications
- Transferring reference heights
- Levelling suspended ceilings
- Levelling electric sockets, cable trays, radiators and pipe installations
- Levelling and aligning doors and windows
- Aligning pipes vertically
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- 3-month no-cost period after each paid repair
- One click or call is all it takes – we do the rest
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Free verification of tool accuracy in accordance with manufacturer’s specifications.
- Individual labels and online visibility provide tool fleet transparency
- Theft coverage helps to reduce financial risk and unexpected expenses.
