MT-SP OC Slider plate

Slider plate MT-SP #2368807

Configurator
Technical Data
Documents
Features & Applications
Related Products
CG003845_v3 (2842718)
CG003870_v3 (2842813)
CG003873_v2 (2842829)
CG003879_v1 (2842866)
LCG003877_v4_cropped (2843418)
Sliding plate_with dimensions_1222_g (2850685)

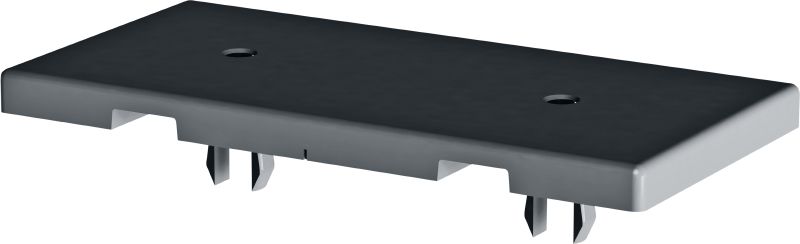

Universal low-friction interface for use between pipes and MT girders with improved temperature and UV-resistance

  • Material composition: PA66-GF30 (UV-stabilised)
  • Surface finish: n/a
  • Material thickness: 6 mm

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
EUR29,20
EUR2,92 / 1 Piece

Technical Data

Details
Technical illustrations
Material composition
PA66-GF30 (UV-stabilised)
Surface finish
n/a
Material thickness
6 mm
Weight
0.03 kg

Documents

Documentation
Technical information
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Improved temperature and UV resistance – suitable for heat exposure with media temperature of up to 150°C (302°F) to help ensure extended lifetime in both indoor and outdoor environments
  • Easier to fix to MT girders with a snap-fit mechanism in a horizontal, vertical, or overhead orientation
  • Robust solution for line and plain guides in combination with U-bolts, pipe shoes

Applications

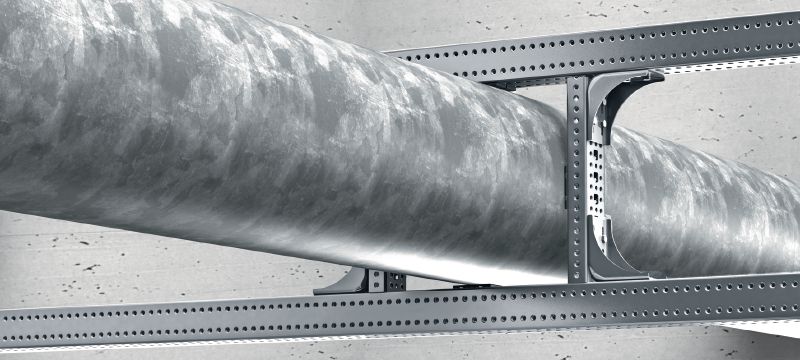

  • Facilitating pipe shoe movement due to thermal expansion or contraction
  • Helping to prevent contact corrosion between the pipe and support system
  • Insulating against heat transfer from media to the surrounding girders
  • Suitable for application temperature of up to 150°C (302°F) and can be used in indoor or outdoor environments
  • Can be used with all boxed profiles from MT-70 up to MT-100 as well as with MT-U-GL1
