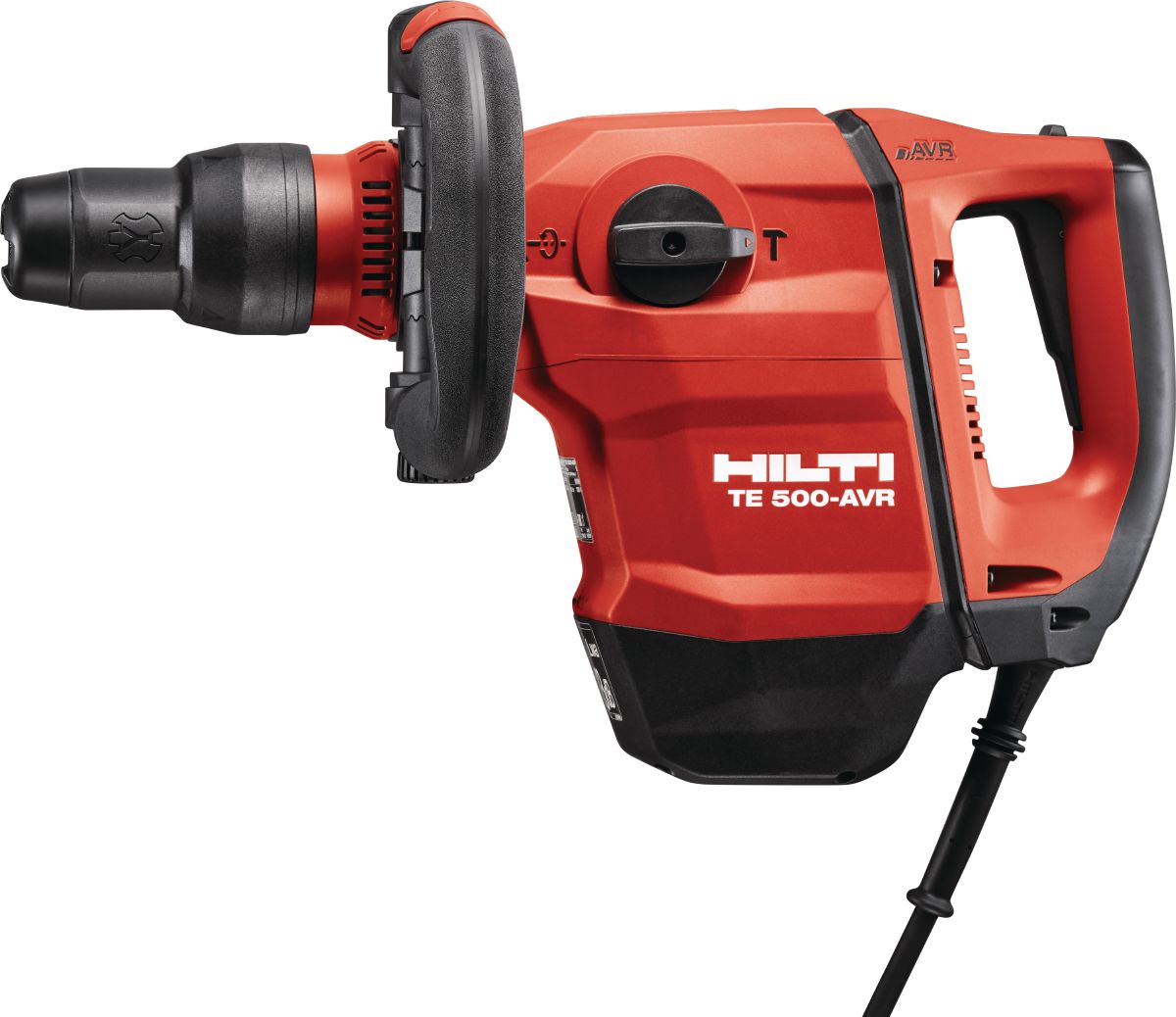

TE 500-AVR SDS-Max chipping hammer
Versatile SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)
- Working direction: Wall
- Tool chuck type: TE-Y (SDS-max)
- Weight according to EPTA-Procedure 01/2003 without battery: 6.3 kg
Customers also searched for Breaker, Wall breaker, Wall demolition or Chipping hammer.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From EUR1 670,00
Technical Data
Working direction
Wall
Tool chuck type
TE-Y (SDS-max)
Weight according to EPTA-Procedure 01/2003 without battery
6.3 kg
Single impact energy
8.5 J
Full hammering frequency
3510 impacts/minute
Max. chiselling performance
1000 cm³/min
Dimensions (LxWxH)
467 x 118 x 265 mm
Triaxial vibration for chiselling in concrete
8.2 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
96 dB (A) 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- High versatility for a wide range of chiseling applications
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- High robustness and long lifetime due to separate lubrication chambers
- Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
- Optional DRS-B dust removal system collects up to 95% of dust
Applications
- Chiseling on concrete and masonry walls
- Channeling on concrete and masonry
- Repairing concrete
- Enlarging breaches
- Light chipping on concrete or masonry
For approval or certificate information, please see individual items.
