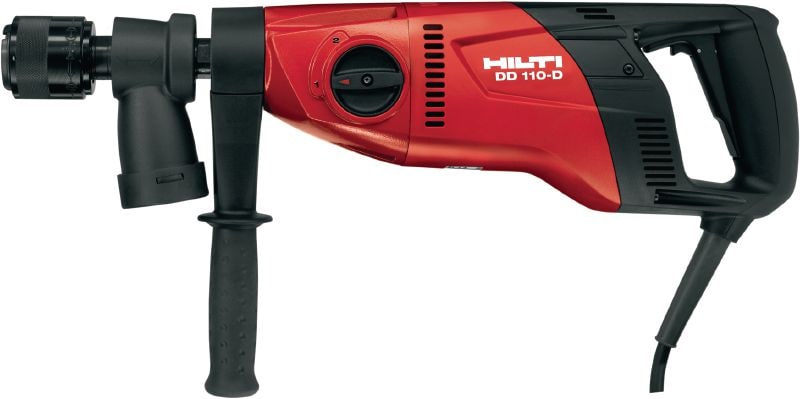

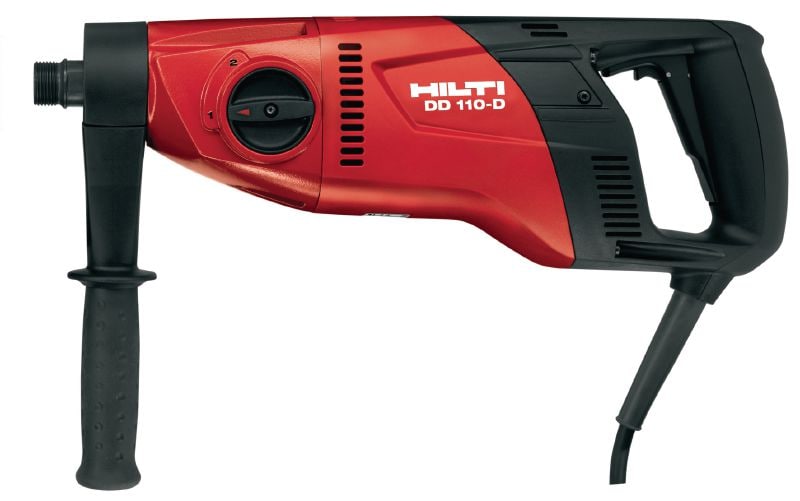

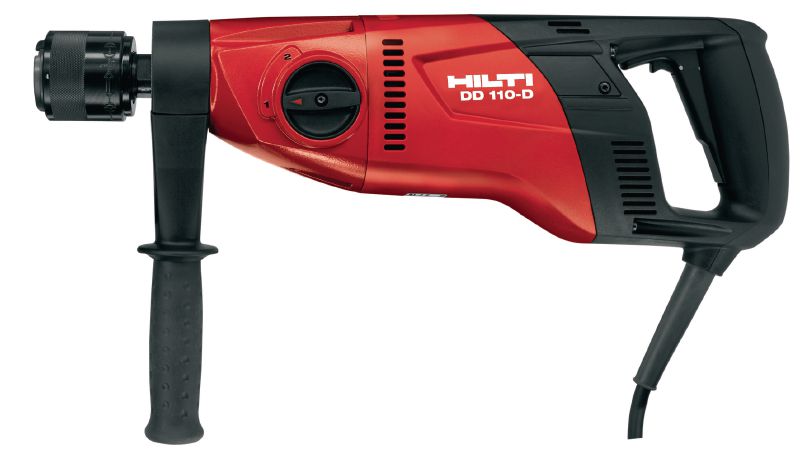

Compact and light diamond drilling machine for dry handheld coring in masonry up to 160 mm

  • Diameter range: 16 - 162 mm
  • Base material: Masonry
  • Operation mode: Hand-held drilling system

Customers also searched for diamond-drillingdry or dry-drilling.

Technical Data

Diameter range
16 - 162 mm
Base material
Masonry
Operation mode
Hand-held drilling system
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
5.3 kg
Dimensions (LxWxH)
446 x 120 x 170 mm
A-weighted emission sound pressure level
96 dB (A) 1
Corner accessibility
49 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • High motor performance and sturdy two-speed gearing for optimum speed
  • Compact, lightweight unit – for much easier handling
  • Safety clutch, overload protection and safety switch for maximum peace of mind when operating
  • Extremely fast drilling progress and high productivity with the Hilti PCM diamond core bits and socket cutters
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

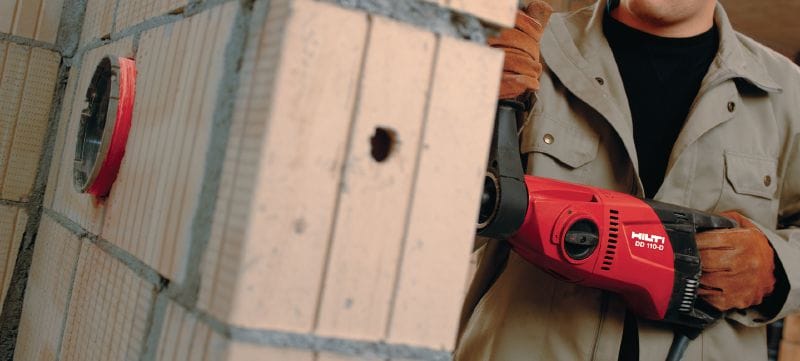

  • Dry coring in aerated concrete, sand lime block, perforated brick, solid brick and clinker

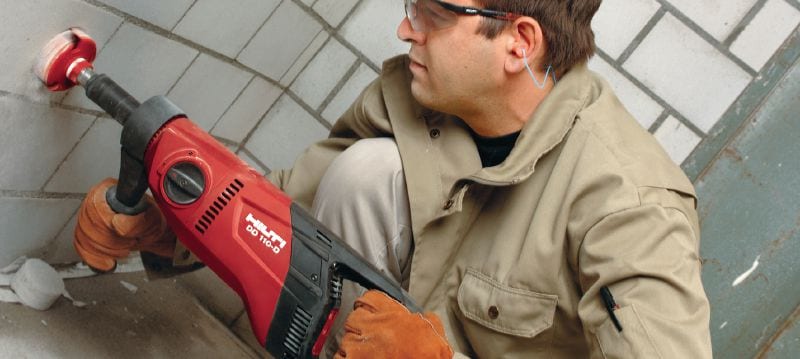

  • Drilling of sockets for the installation of electrical fittings

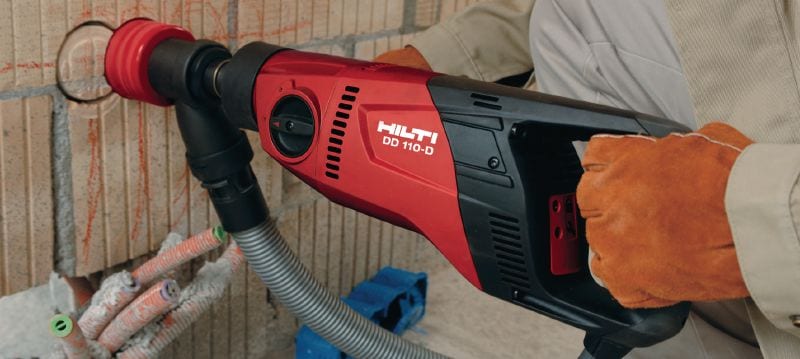

  • Through holes for cables and cable trays
  • Through holes for pipes etc. in plumbing, heating and air conditioning installation

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • 3-month no-cost period after each paid repair
  • One click or call is all it takes – we do the rest
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
  • Individual labels and online visibility provide tool fleet transparency
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management

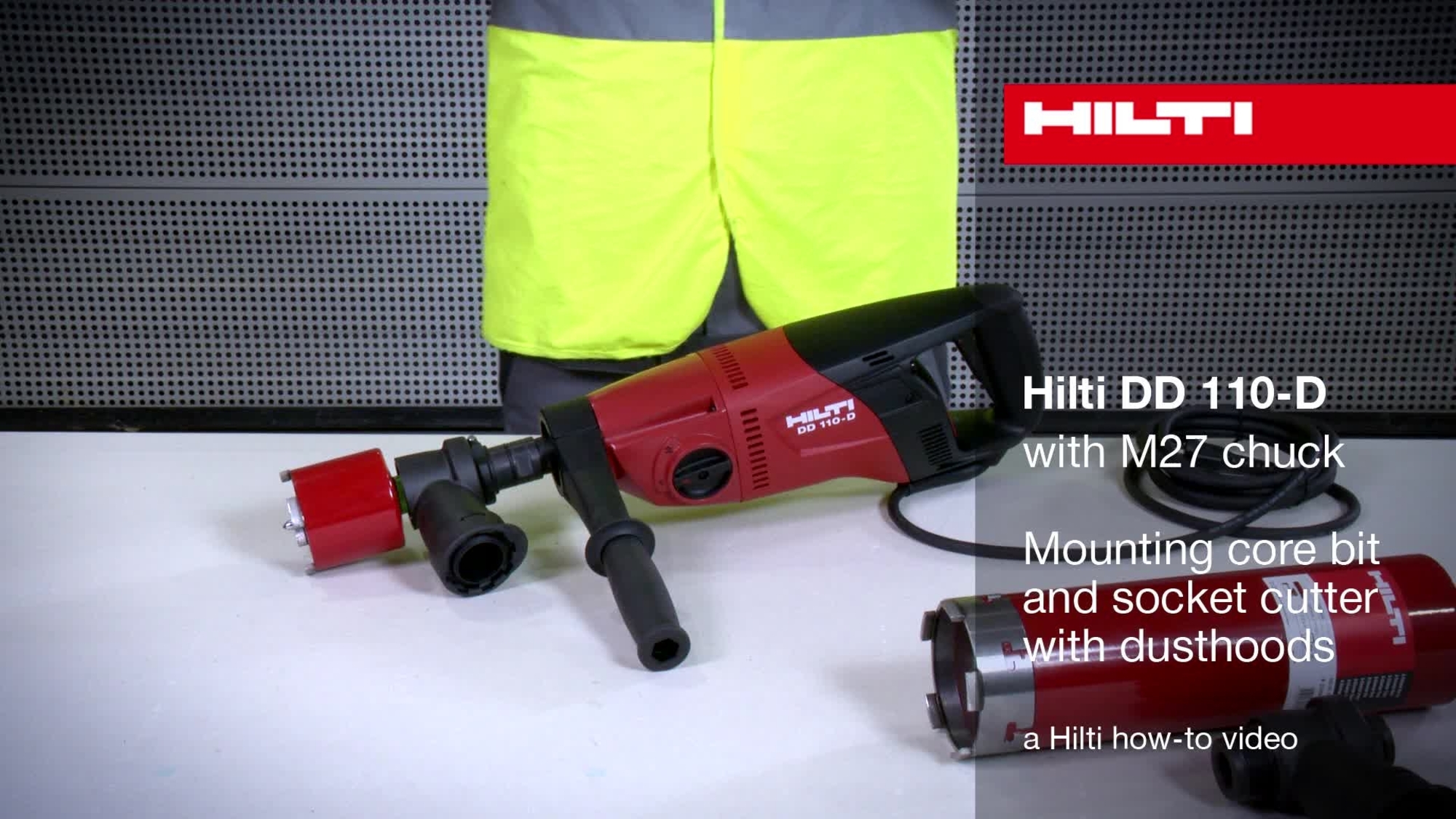

Product Videos
