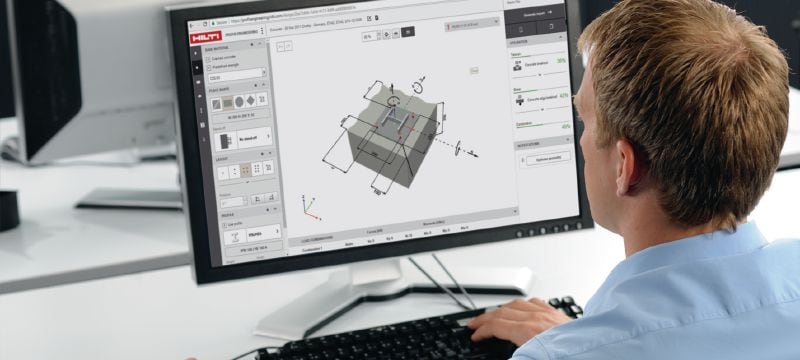

PROFIS Engineering Suite structural design softwareNew product
Cloud-based PROFIS engineering software for designing concrete-to-steel and concrete-to-concrete connections according to a wide range of codes and approvals
- Capabilities: Anchoring steel to concrete, Anchoring steel to masonry, Concrete overlay, Concrete over metal deck, Handrail fastening, Post-installed rebar
- Codes and approvals: Supports many country-specific design methods, and can generate detailed design reports to easily verify compliance.
- Training and support: No matter if you are a newcomer or an expert, we offer technical training and demonstrations (face-to-face and online) to guarantee you can exploit the full potential of the software.

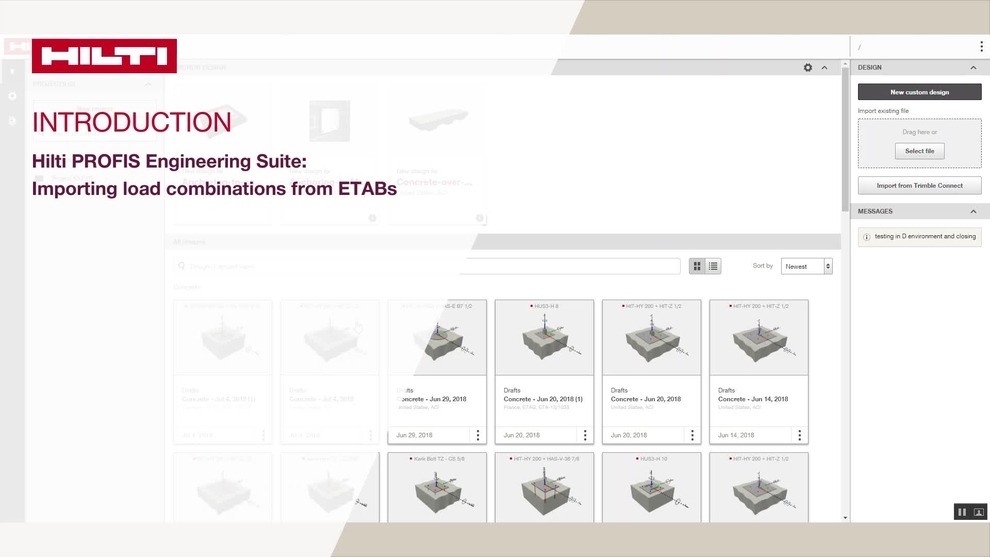

PROFIS Engineering Suite is cloud-based, so you can get started instantly. Even the latest codes and product details update automatically. All this pre-set information can save you hours researching the latest approvals, codes and anchors. Avoid other slow, error-prone tasks – like manual load transfer – thanks to the direct import function from other structural analysis software such as Etabs, Robot, SAP2000, StaadPro, Dlubal RFEM and RSTAB.
The extra precision offered by the paid version of PROFIS Engineering Suite, especially Component-based Finite Element Method (CBFEM) analysis, helps you cut excessive tolerances when designing connections. The result is a design which helps you to save material and labor costs, while still reflecting relevant codes and real behavior of the whole baseplate connection.
After the free trial of the premium version ends, you can still rely on PROFIS Engineering Suite for virtually all common structural connections. Our standard free software is ideal for everyday cases where rigid design or a baseplate rigidity check is enough. You will be able to design cast-in place anchors using the free software.
Detailed, step-by-step anchor design reports displaying drawing and structural formulas on each step can be generated on-demand. Your designs can also be exported in 2D and 3D for integration into your standard BIM and CAD programs.
Various Eurocodes, ACI, AISC, Indian Standards, Australian Standards and Russian Codes are supported. PROFIS Engineering Suite automatically updates to use the latest versions of the codes and approvals you need.
Designing with PROFIS Engineering Suite can improve efficiency on the jobsite too. Site Managers can use our smartphone app to find anchor item numbers, while Contractors can easily generate handrail reports to satisfy EN 1090 quality and safety standards.

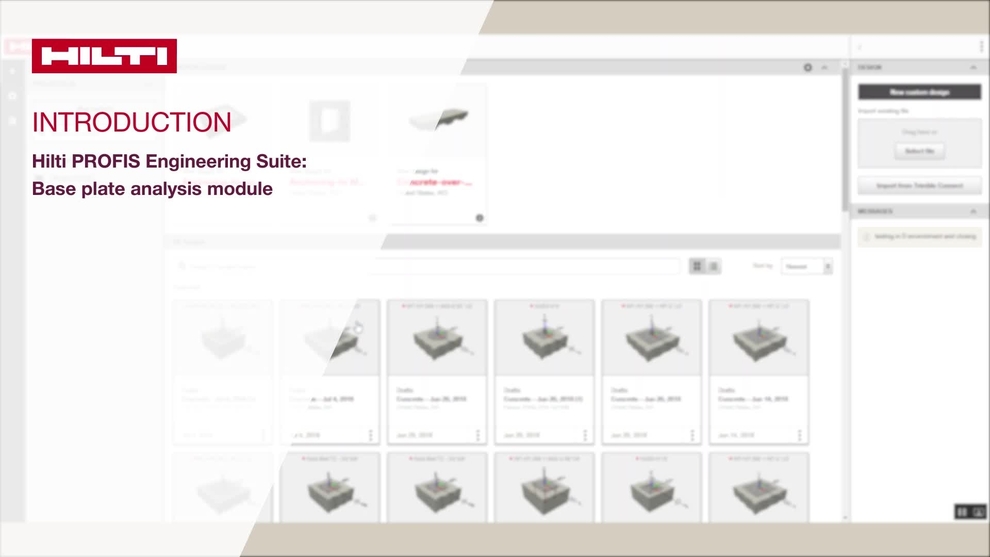

Documents & Videos
Consulting & Support
PROFIS Engineering Suite
An all-in-one solution for connection and fastening design
PROFIS Engineering Suite is user-friendly, cloud-based software that makes designing and analysing structural connections faster and easier than ever.
Not just for anchors, PROFIS designs, calculates and analyses multiple fixings, including steel to concrete, concrete to concrete and steel to masonry as well as entire handrail and baseplate solutions that are more reliable, more cost-effective and code-compliant. The software also comes with application specific engineering trainings that enable you to unlock the full potential of PROFIS.
TRY PROFIS ENGINEERING PREMIUM FREE FOR 30 DAYS*
*Once your trial has expired, you will have access to our STANDARD version for free.
Choose the version and license model that best suits your needs
The Standard version is always free – or try the fully featured Premium version for free for 30 days. After this trial, you can automatically continue to the free Standard version or purchase a Premium license.
WHAT CAN PROFIS ENGINEERING SUITE DO FOR YOUR COMPANY?
Get peace of mind knowing that your design will automatically meet local codes and approvals. As a leading manufacturer of anchors, interpreting codes and putting them to work is our key ambition.
Manual input errors mean costly rework. Get it right the first time by importing load cases from structural analysis software, processing multiple loads simultaneously and building accurate BIM/CAD models.
Use templates to design connections in minutes. Don't waste time researching – let PROFIS spec the anchors instead. And speed up communication by granting your entire team access to the most recent file in the cloud.
Whether you are an experienced or a graduate engineer, our technical training – covering application basics and advanced modules – enable you to do fast, compliant designs.
Anchoring to Concrete

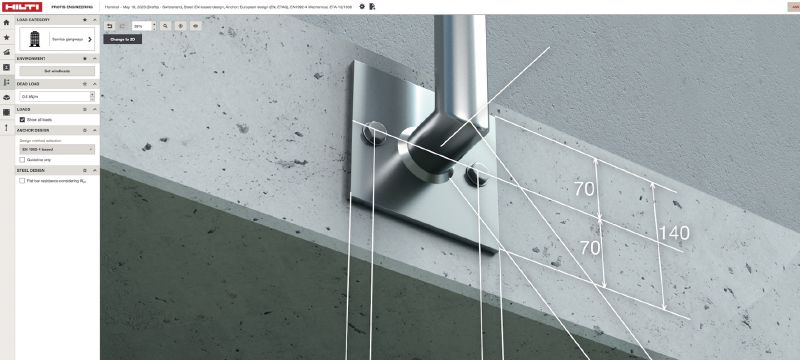

Design complex and day-to-day structural baseplate connections
Use preset templates to design concrete fixings including baseplates, anchors, welds and stiffeners quickly and accurately. With just a click you can analyse baseplates using CBFEM and perform rigidity tests to determine whether to adapt the design or the loads. Optimize fixture points and perform stress and strain checks – PROFIS considers applied loads such as seismic and fatigue and can find economical solutions for avoiding breakout using supplementary reinforcement. Smart baseplate design further simplifies your design process.
Generate a customized report complete with code references, calculations, product information and images.
Concrete to Concrete: PIR
Everything you need to design post-installed rebar applications
Add or extend concrete elements whether you're working with existing rebar or missing starter bars. Solve concrete structural joints and splices, and then verify the shear resistance at the interface between the old and new concrete.
Need to adapt the layout or geometry of your PIR design? PROFIS lets you easily customize the diameter, embedment depth and spacing parameters for existing concrete as well as post-installed.
Concrete to concrete: Overlay
Design for concrete overlay and post-installed shear dowels

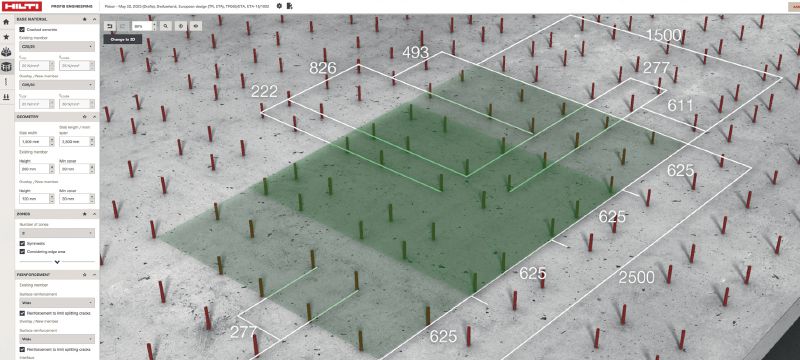

With PROFIS you can dimension post-installed shear connectors and verify the interface between the concrete cast at different times. Establish whether your design has edges or is symmetric, and then define different areas of acting shear. You'll know your designs are sound thanks to intuitive 3D graphics that show how stresses vary throughout the connection.
Ready for installation? PROFIS has already saved you time by optimizing the layout.
Anchoring to masonry
Design masonry fixings more productively and accurately
PROFIS Engineering Suite can help you design accurate baseplate connections using masonry-approved anchors. Save time with intuitive built-in templates that combine your on-site data with factors such as allowable tension and shear loads while considering load reductions and geometry requirements.
Select from multiple sizes and types of brick or concrete masonry units, adjust their layout and define whether grout is present. You can even create your own templates to reduce design time on similar projects.
Design complete connections for platforms, balconies and staircases
PROFIS doesn't consider just codes and regulations when designing handrail connections – it determines the loads acting on the handrail depending on how it's being used, wind conditions and more. It then performs a stability check.
Within minutes you'll create complete designs for welds based on thickness, weld type and material. And to reduce steel costs, PROFIS can suggest where to incorporate plastic into the design to allow for thinner rail and post profiles that still satisfy regulations.
What license fits your needs?
Try our premium version free of charge for 30 days. After the trial expires, you will have the choice to buy Profis Engineering Premium or switch to the free version.
Gain access to all of the Structural Connection Applications.
Free after 30-Day Trial of Premium
Experience all of the Premium features for 30 days.
Free for 30 days
Experience all of the Premium features assigned to one user.
Experience all of the premium features shared between an unlimited number of users. For each license purchased, one user at a time can access the premium features.
- Structural Applications and Design Codes
- Base Plate Design Type
- 3rd Party Integrations and productivity
Standard license for every user
License shared by a user group
Project Sharing and collaboration
ACI, EN199-4 and multiple local codes and annexes
Timber Screwn Design
Advanced Baseplate Design with CBFEM
Baseplate Rigidity Check with CBFEM
Rigid Anchor Load Distribution
SOFA Hilti Design Method
AISC Design Guide 1
Custom Template Creation
Image Adding to Reports
