MFT-S2S U M Bracket
U-shaped medium bracket as central part of the floor-spanning S2S system
- Material composition: EN AW-6063 T66
- Width: 74 mm
- Height: 85 mm
Customers also searched for Helping Hand Bracket, Ventilated Facade or Rainscreen Cladding.
Technical Data
Material composition
EN AW-6063 T66
Width
74 mm
Height
85 mm
Documents
Features & Applications
Features
- Bracket lengths range from 75-295 mm
- Anchor and screw fastening option all in one bracket
- 11 mm hole for use of anchors on concrete and masonry
- 6.5 mm hole for screws on steel and wood
Applications

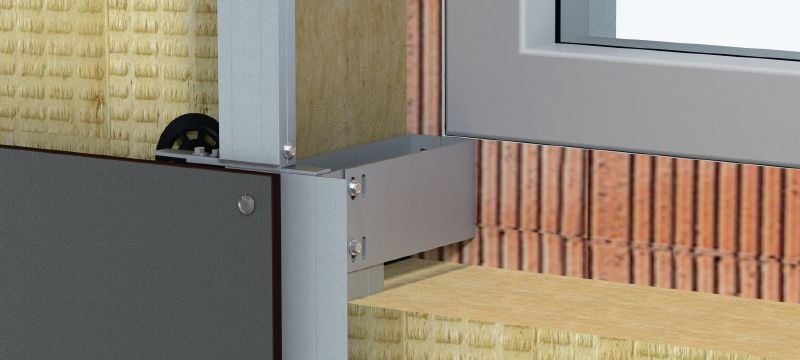

- U-shaped bracket as central part of the floor-spanning S2S system, installing ventilated facades independent of the wall condition between the slabs
- Suitable for all facade cladding types
- Allows precise installation and alignment of S2S profiles
- Elongated holes to allow for expansion of the S2S profiles
For approval or certificate information, please see individual items.
