MQN-C
Galvanised channel connector for joining any elements with a butterfly opening
- Product class: Ultimate
- Material composition: Plate: steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
- Surface finish: Indoor Coated - Electro galvanised
ultimate
Technical Data
Product class
Ultimate
Material composition
Plate: steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Extremely fast installation thanks to the push-only function
- Designed to be simple, compact and time-saving

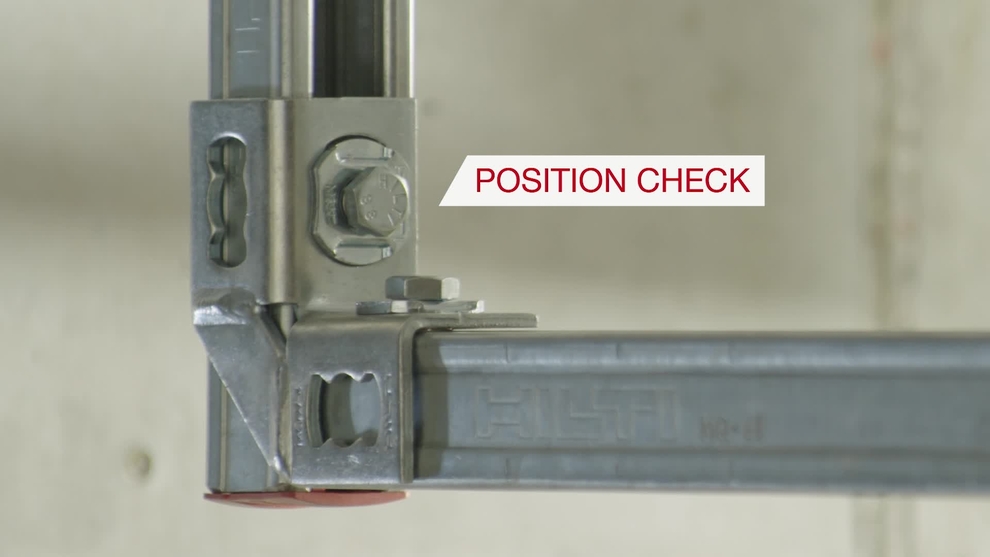

- Holds securely once it has been pressed, turned and tightened correctly
- Universal – one push button for all connectors and MQ channels
- Fewer parts and high flexibility
Applications
- Connecting angles to strut channels
- Connection element for U-frame/crossbeam structures
- Connecting strut channels and structural elements
- Connecting MQ brackets, angles and bases to MQ profiles
- One-part fastener replaces a spring nut, bolt and washer for quick installation
For approval or certificate information, please see individual items.
Related Products
PC software for transferring anchor/fastener setting data and updating the SI-AT-A22 Adaptive Torque module via USB cable
Ultimate galvanised pre-assembled rail support for fastening MQ strut channels to substructures
Ultimate galvanised pre-assembled angles for fastening MQ strut channels to each other

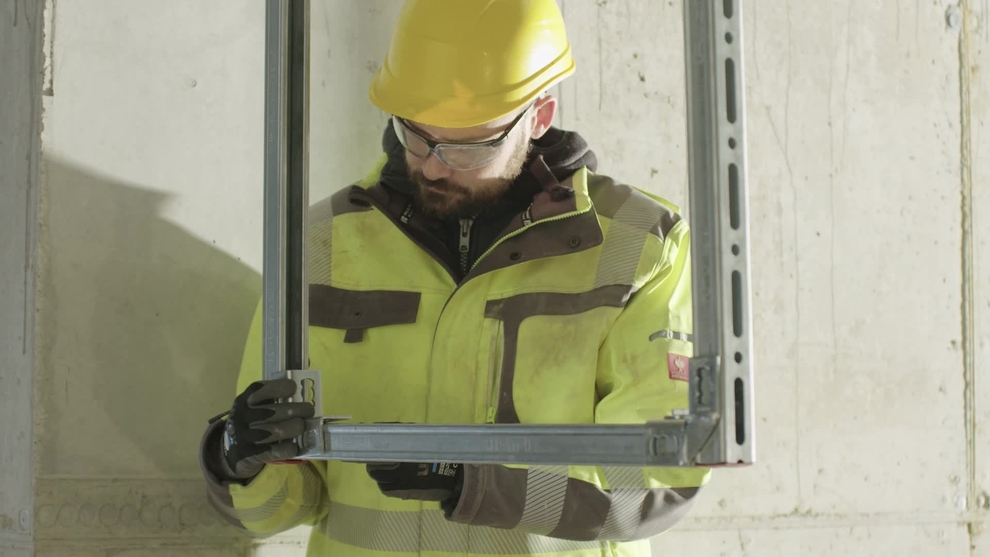

Product Videos
