AG 4S-A22 Cordless angle grinder
22V cordless angle grinder with electronic speed control and brushless motor for everyday cutting and grinding with discs up to 5" or 125 mm
- Rated voltage: 21,6 V
- Disc diameter: 125 mm
- Max. cutting depth: 34 mm
Customers also searched for 5" grinder, battery grinder or 22V grinder.
Technical Data
Rated voltage
21,6 V
Disc diameter
125 mm
Max. cutting depth
34 mm
No load RPM
gear 1: 3400 rpm; gear 2: 3800 rpm; gear 3: 4400 rpm; gear 4: 5200 rpm; gear 5: 6300 rpm; gear 6: 7600 rpm
Trigger type
Lockable on / off
Dimensions (LxWxH)
306 x 85 x 138 mm
A-weighted emission sound pressure level
81.5 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
4.7 m/s² 2
Disclaimer
Use the specified guard for the type of disc selected
Weight according to EPTA-Procedure 01/2003 without battery
3.11 kg
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- Brushless motor – lasts up to three times longer (no commutator to damage and no carbon brushes to change)
- Very slim design with lock-on switch – this cordless angle grinder fits firmly in your grip, for more comfortable handling and precise control even in hard-to-reach places
- Precise speed control from 3400-7600 rpm – you can use higher speeds to cut and grind very quickly, while the lower speeds help you to achieve a perfect surface finish
- Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the disc jams – helping to reduce a common safety hazard
- Cordless tool platform – the same battery for all your 22V Hilti tools
Applications

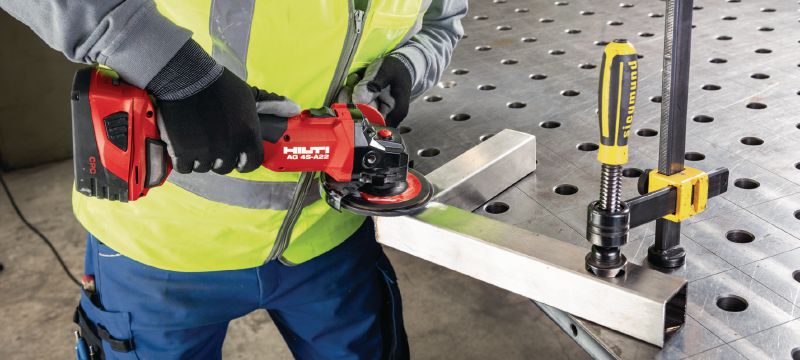

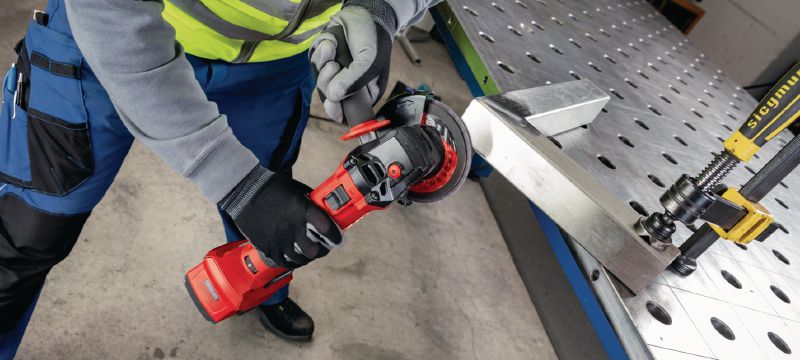

- Cutting and grinding steel, stainless steel and other metals
- Finishing metal
- Deburring and polishing metal
- Cutting and grinding mineral materials
- Cutting tiles using continuous-rim diamond discs
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After 2 years repair costs are capped
- Product warranty against parts and manufacturing irregularities for 20 years
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Theft coverage helps to reduce financial risk and unexpected expenses.
- Individual labels and online visibility provide tool fleet transparency
- Loan tools during repair to reduce downtime.
- High-performing tools and latest technology help to increase jobsite productivity.
Related Products
Ultimate thin-kerf stainless steel cutting disc for stainless steel and other metals
Ultimate ceramic abrasive grinding disc for metal, offering extra-high removal rate and extra-long lifetime
Ultimate diamond blade for superior cutting performance in hard tile materials such as porcelain gres and granite
Ultimate diamond blade for superior cutting performance in soft tile materials such as ceramic and marble
