Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Noise reduction: 18.5 dB (A)
  • Temperature resistance: -40 - 110 °C
  • Material composition: DC01 - DIN EN 10130
premium

Technical Data

IS_MP-L-I-M8_0001 (183208)
IS_MP-L-I-M8-M10_0001 (183209)
Noise reduction
18.5 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
60° ±5° Shore A
Product class
Premium

Documents

Features & Applications

Features

  • One-screw safety flap closure – easy single-handed closing and re-opening
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Secured hinge with wide, infinitely adjustable opening angle
  • Safety flap closure mechanism prevents unintentional re-opening
  • Securely attached profiled rubber inlay with tested sound decoupling values

Applications

  • Light-duty pipe installations up to 6"
  • Fastening fresh water, waste water and heating pipes
  • Sanitary and heating applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Ceiling, floor and wall applications

For approval or certificate information, please see individual items.

Consulting & Support

Would you like an interactive demonstration of this product? Meet one of our product experts for a free and hands-on presentation.

Use this instant messaging tool to get easy and quick access to our Customer Service team.</br>This service is available during business hours 8:00 AM – 5:00 PM.

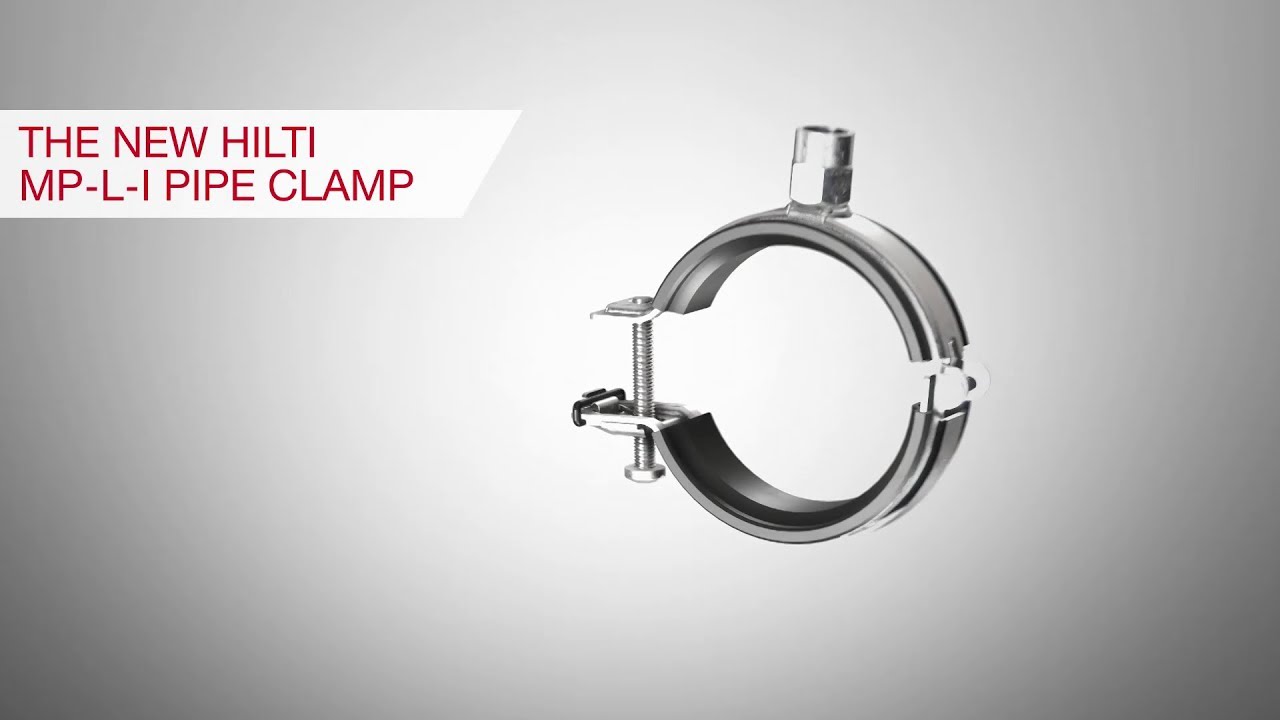

ONE NEW PIPE CLAMP FOR MANY APPLICATIONS

The Hilti MP-L-I pipe clamp is designed for fast, simple and reliable installation across the full range of light duty applications

Working with traditional pipe clamps can be a tricky business. Getting the pipe into the clamp and having the fastening points line up correctly sometimes means two hands are not enough.

Our new secured hinge opens wide, up to 180° and holds its position while you adjust the pipe. The single fastening screw clicks directly into place every time, meaning the clamp can be easily closed and tightened with just one hand – even with your eyes closed.

What's more, this handy new pipe clamp range covers all pipe sizes and materials from 10 mm all the way up to 170 mm so whether you are fastening heating pipes or waste water, we've got you covered.

See how our new pipe rings can make you more productive

MP-L-I Pipe Clamp
