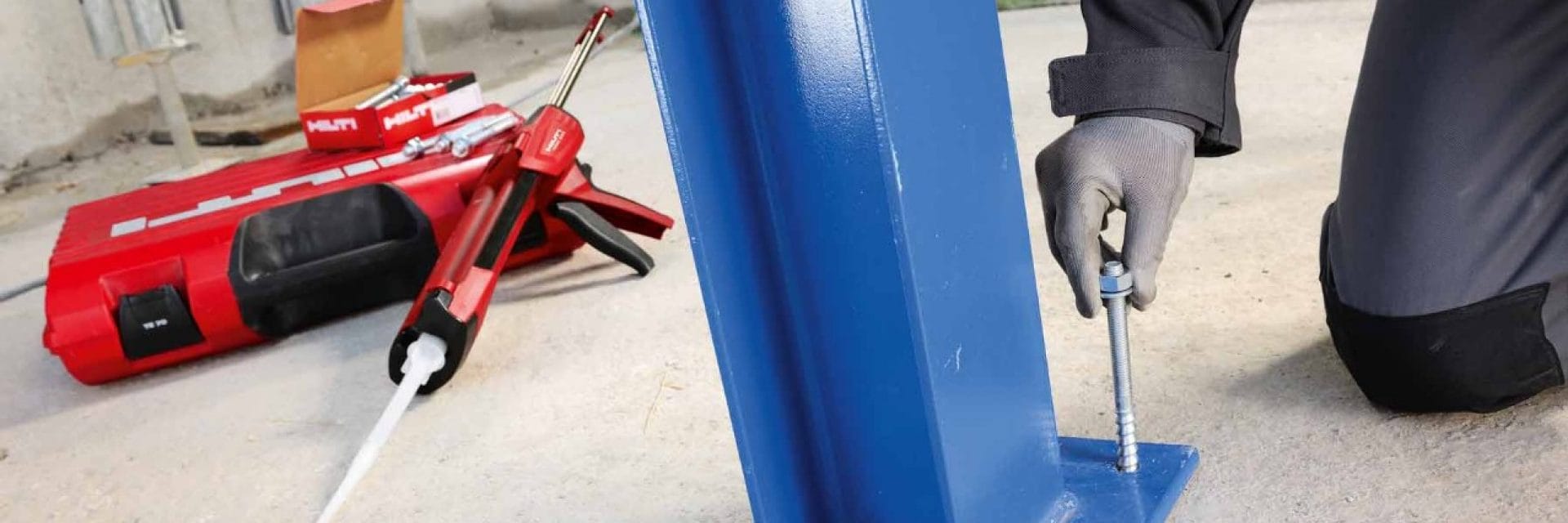

HOW TO FASTEN BASE PLATES

All our fastening systems are code compliant and offer a wide range of solutions for concrete and masonry.

They can be used for non-structural and structural elements in seismic design.

We offer back up engineering services to help with design, design software, onsite testing and consultation, training, technical data and documentation.

Our anchor systems are all designed to make your build safer and more reliable.

• Our Hilti HIT-HY 200 + HIT-Z SafeSet Technology – eliminates the need for manual cleaning of drill holes almost entirely, saving up to 50% of your installation time.
• Our Hilti HIT-HY 270 chemical anchors – use for masonry applications and with our Hilti PROFIS Anchor design software, for code compliant designs.

When fastening anchors for base plates it’s important to carefully consider:

• Applied forces – including seismic, fatigue, wind
• Base material – whether it’s masonry, cracked concrete or non-cracked concrete
• Distance to edges and spacing
• Attachments
• Corrosion

If you need help with design, you can work with our expert Hilti Engineers – contact your local Hilti team for more information.

Or use our Hilti PROFIS Anchor Channel and Hilti PROFIS 3 design software:

• It’s up-to-date with the latest codes and regulations
• Includes cast-in place, mechanical and chemical anchors
• Links to our Hilti BIM/CAD library
