Wet and dry electric hand-held diamond cutter – cutting depth up to 120 mm with 305 mm blades

  • Disc diameter: 305 mm
  • Cutting depth: 120 mm
  • No load RPM: gear 1: 4900 rpm

Customers also searched for concrete cutter or electric saw.

Technical Data

Disc diameter
305 mm
Cutting depth
120 mm
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Arbor size
22.2 mm
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
705 x 240 x 235 mm
Wet or dry operation
Wet and dry
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Water kit allows wet cutting, which is 30% faster than dry cutting and virtually dust-free
  • Depth gauge – allows full control of the cutting depth in 10 mm steps from 40-120 mm
  • Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
  • Protection against overheating, overloading and water – prolongs the tool's lifetime and increases the operator's safety when wet cutting
  • The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer

Applications

  • Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks
  • Cutting and extending openings for windows, doors and shafts
  • Making preliminary cuts for controlled demolition

For approval or certificate information, please see individual items.

Product Videos

Consulting & Support

Would you like an interactive demonstration of this product? Meet one of our product experts for a free and hands-on presentation.

Use this instant messaging tool to get easy and quick access to our Customer Service team.</br>This service is available during business hours 8:00 AM – 5:00 PM.

How to cut through walls in half the time

The power of a full-size saw with cutting depth and precision far beyond 230 mm grinders: learn how electric saws can improve your productivity

Let’s cut to the chase: electric cutters have always been the saw of choice when low maintenance and precision take priority. What they lacked, however, was raw power.

Times have changed. The latest generation of electric cutters from Hilti, such as the DCH 300-X, benefit from wet cutting capabilities and newly customised blades. These two advances accelerate cutting speed by around 30% each, so you can now rely on electric saws for everyday tasks without sacrificing speed. Only the most demanding, specialised applications will need the extra power and cutting depth of a larger saw.

When you add the additional advantages of electric saws – especially being fume-free and much quieter, so you can use them indoors or in inhabited buildings – it is easy to see why they are the tool of choice for many common applications. Our largest handheld electric cutters can cut through 120 mm with a 305 mm blade. That’s the cutting depth you normally only get with more expensive 350 mm blades. Thanks to this clever tool engineering, you can cut all the way through a typical concrete or masonry wall or floor from one side – no more having to align and cut from both sides. Routine cutting or widening openings just got twice as fast as with an angle grinder.

Advantages over angle grinders and gas saws

DCH 300-X

Push, don't pull

Like our gas saws and angle grinders, our electric cutters spin their blades in the opposite direction. In practice, this means that you push an electric cutter on its wheels, away from you. This makes it easier to control, so you can get a perfectly perpendicular cut exactly where you need it. Safety improves too, as the blade moves away from the user and is always concealed behind the dust hood.

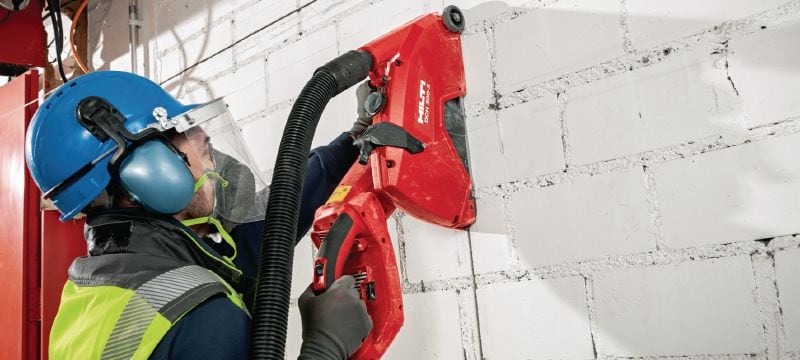

DCH 300-X wall cutting

No double work

Even 230 mm angle grinders will achieve a cutting depth of just 60 mm at best. This limited reach means that you will always have to cut from both sides to get all the way through a wall or floor. By opting for a larger cutter, you get cutting depth that can exceed the thickness of typical concrete or masonry walls and floors, so you can cut all the way through from one side. Put simply, deeper cuts translate to higher productivity.

No throttle

To start an electric cutter, all you need to do is plug it in and pull the trigger.

No fumes

An electric saw has no combustion motor, so is much quieter, more environmentally friendly and can be used indoors.
